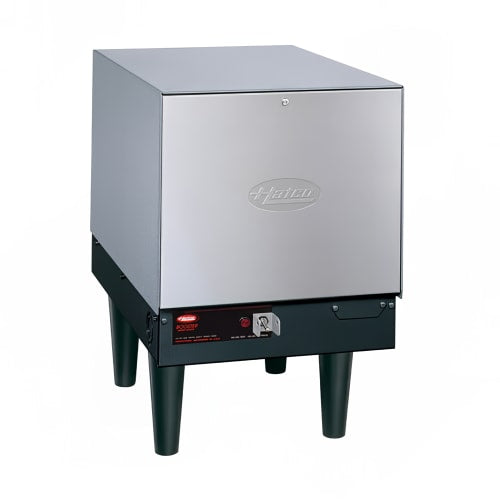

Hatco C-9 Compact Booster Water Heater, 6 Gallon, 9 kW, 480v/3ph

Product Details

• 6-gal. capacity
• Heats water to the sanitation temperature of 180 degrees F
• Maximum 90 GPH at 40-degree-F rise
• Maximum 52 GPH at 70-degree-F rise
• Insulated with fiberglass to minimize heat loss
• Tank lined with Castone to prevent scale buildup
• Silver powder-coated hammertone body
• Stainless steel swinging front panel gives access to probes and elements
• 6-in. plastic legs
• Slide brackets available (not included)
• 2 pressure gauges
• Temperature relief valve and pressure reducing valve
• Pilot indicator light
• Low-water cut-off prevents elements from burning out
• High-temperature limit control
• Calibrated immersion thermostat
• Pre-wired and pre-plumbed at factory
• ³⁄₄-in. NPT pipe
• Fittings for water inlet and outlet
• On/off switch

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 16.3 A, 9 kW
• 480 V/60 Hz/3 ph

*Free shipping on Hatco C-9 within the 48 contiguous states.

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 9-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, NSF, cUL, UL, 480v/60/3ph

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
