Hatco C-9 Compact Booster Water Heater, 6 Gallon, 9 kW, 240v/3ph

Product Details

• 6-gal. hot water capacity
• Water reaches the 180-degree-F threshold for sanitization
• Maximum 90 GPH at 40-degree-F rise
• Maximum 52 GPH at 70-degree-F rise
• Prevents element burnout with low-water cut-off
• High-temperature limit control keeps temperature from getting too high
• Calibrated immersion thermostat
• Temperature relief valve and pressure reducing valve
• Pilot indicator light
• 2 pressure gauges
• 6-in. legs
• Can be mounted with slide brackets (not included)

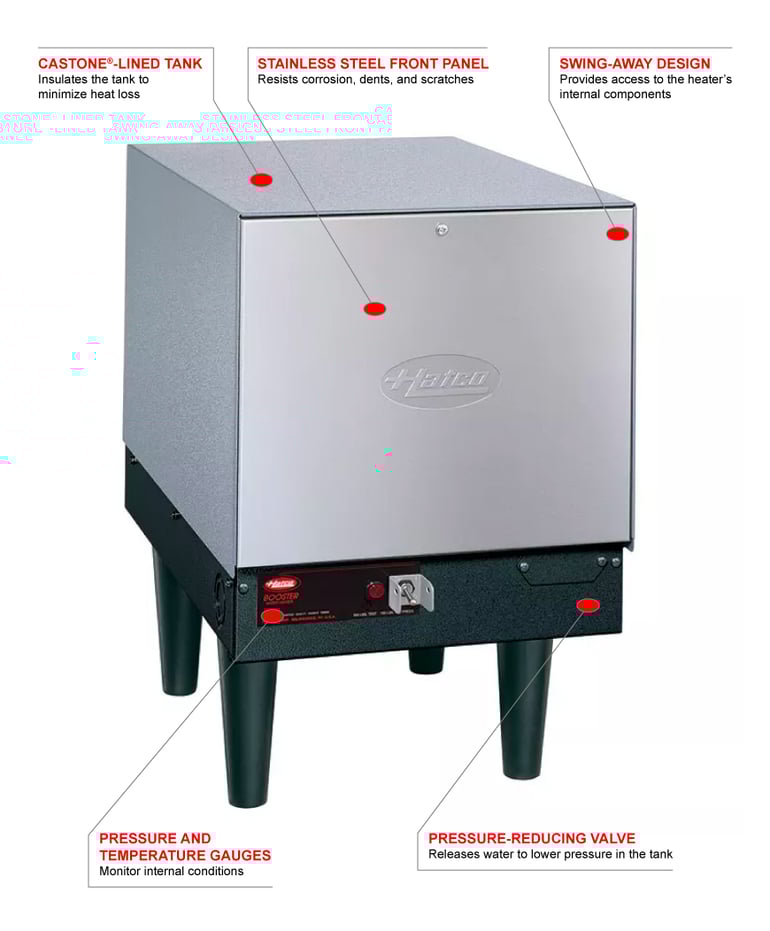

• Fiberglass insulation surrounds the tank, holding heat inside
• Castone tank lining prevents limestone buildup
• Powder-coated hammertone body
• Stainless steel front panel swings for probe access
• On/off switch
• ³⁄₄-in. NPT pipe
• Fittings for water inlet and outlet

Product Features

*Free shipping on Hatco C-9 within the 48 contiguous states.

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 32.4 A, 9 kW
• 240 V/60 Hz/3 ph

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 9-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, 240/60/3-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
