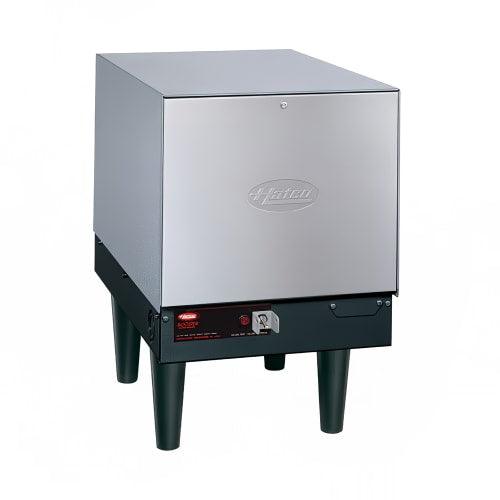

Hatco C-9 Compact Booster Water Heater, 6 Gallon, 9 kW, 208v/1ph

Product Details

• delivers water at 180 degrees F for proper dish sanitizing
• Maximum 90 GPH at 40-degree-F rise
• Maximum 52 GPH at 70-degree-F rise
• 6-gal. tank storage capacity
• Castone tank lining is strong for high-volume use
• Fiberglass insulation keeps heat inside the tank
• On/off switch has a pilot indicator light that illuminates during operation
• Pressure-reducing valve regulates and stabilizes flow pressure
• Temperature/pressure relief valve lowers levels by releasing water from the tank
• Low-water cut-off feature prevents heating element burnout by shutting off power to the element when water levels are low
• Front panel swings away for access to the components during service work
• Stainless steel front panel is strong and corrosion resistant
• Body is powder coated for durability through consistent use
• 6-in. non-adjustable, plastic legs lift the unit off the floor

Product Features

*Free shipping on Hatco C-9 within the 48 contiguous states.

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 43.3 A, 9 kW
• 208 V/60 Hz/1 ph

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 9-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, 208/60/1-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
