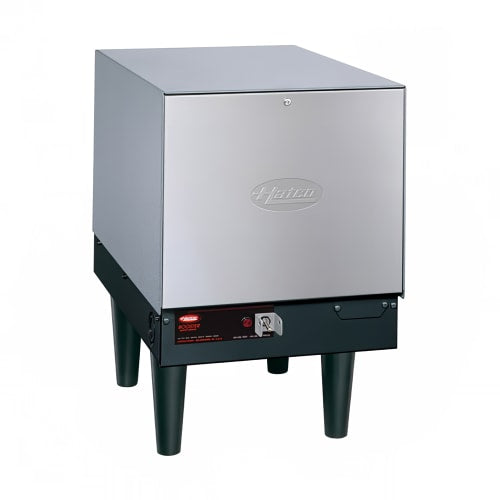

Hatco C-7 Compact Booster Water Heater, 6 Gallon, 7 kW, 480v/3ph
by Hatco
Original price
$2,593.80
-
Original price
$2,593.80
Original price
$2,593.80
$2,593.80
-
$2,593.80
Current price
$2,593.80
Product Details
- Tank water reaches 180 degrees F for sanitization
- Maximum 70 GPH at 40-degree-F rise
- Maximum 40 GPH at 70-degree-F rise
- 6-gal. storage capacity
- 6-in. plastic legs
- Mountable with slide brackets (not included)
- Heat-trapping fiberglass insulation
- Powder-coated silver hammertone body
- Castone-lined tank reduces how much limestone sticks to the sides
- Stainless steel swing-away front panel enables maintenance access to probes and elements
- Pilot indicator light
- Temperature relief valve and pressure reducing valve maintain the correct level
- 2 pressure gauges
- High-temperature limit control
- Low-water cut-off protects elements from overworking and burning out
- On/off switch
- 3ā4-in. NPT pipe
- Fittings for water inlet and outlet
Dimensions & Utilities
- 13.06 in. W x 26 in. D x 19.78 in. H
- 12.6 A, 7 kW
- 480 V/60 Hz/3 ph
*Free shipping on Hatco C-7 within the 48 contiguous states.
From The Manufacturer
space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 7-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, NSF, cUL, UL, 480v/60/3ph
*Image may not depict product color, inclusions or accessories.
Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 70 |
| 70F Recovery (gph) | 40 |
| Amps | 12.6 |
| Capacity (gallons) | 6 |
| Heat | Electric |
| Hertz | 60 |
| kW | 7 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Usage Level | Medium Duty |
| Voltage | 480 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 0 - 10 |
| Width (in) | 13 |
| Weight | 118.00 |
