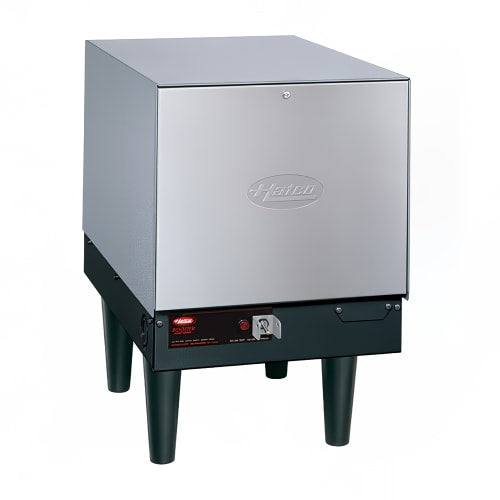

Hatco C-7 Compact Booster Water Heater, 6 Gallon, 7 kW, 240v/3ph

Product Details

• Maximum 70 GPH at 40-degree-F rise
• Maximum 40 GPH at 70-degree-F rise
• Produces 180-degree-F water temperatures for sanitization
• 6-gal. capacity
• Castone-lined tank stops limestone buildup
• Stainless steel front panel
• Front panel swings for quick control access
• Fiberglass insulation traps heat
• Silver powder-coated hammertone body
• 6-in. plastic legs
• Slide mounting brackets available if indicated (not included)
• Calibrated immersion thermostat
• Factory pre-plumbed and pre-wired
• High-temperature limit prevents heat damage to internal components
• Low-water cut-off prevents element burnout
• Temperature pressure valve
• Pressure reducing valve
• Pilot indicator light
• 2 temperature gauges
• ³⁄₄-in. NPT pipe
• Fittings for water inlet and outlet
• On/off switch

Product Features

*Free shipping on Hatco C-7 within the 48 contiguous states.

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 25.2 A, 7 kW
• 240 V/60 Hz/3 ph

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 7-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, 240v/60/3-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
