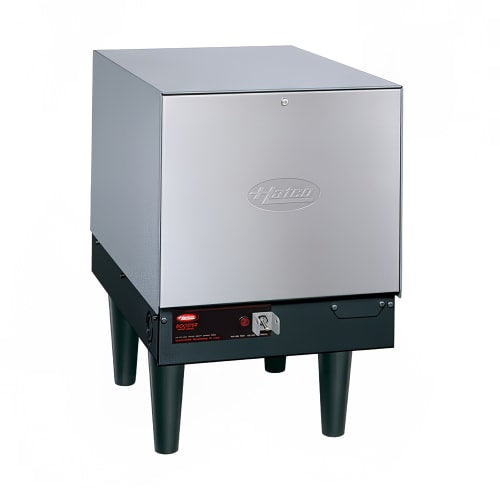

Hatco C-7 Compact Booster Water Heater, 6 Gallon, 7 kW, 240v/1ph

Product Details

• delivers water at 180 degrees F for sanitizing dishes in the warewasher
• 70 GPH with 40-degree F rise
• 40 GPH with 70-degree F rise
• 6-gal. storage capacity

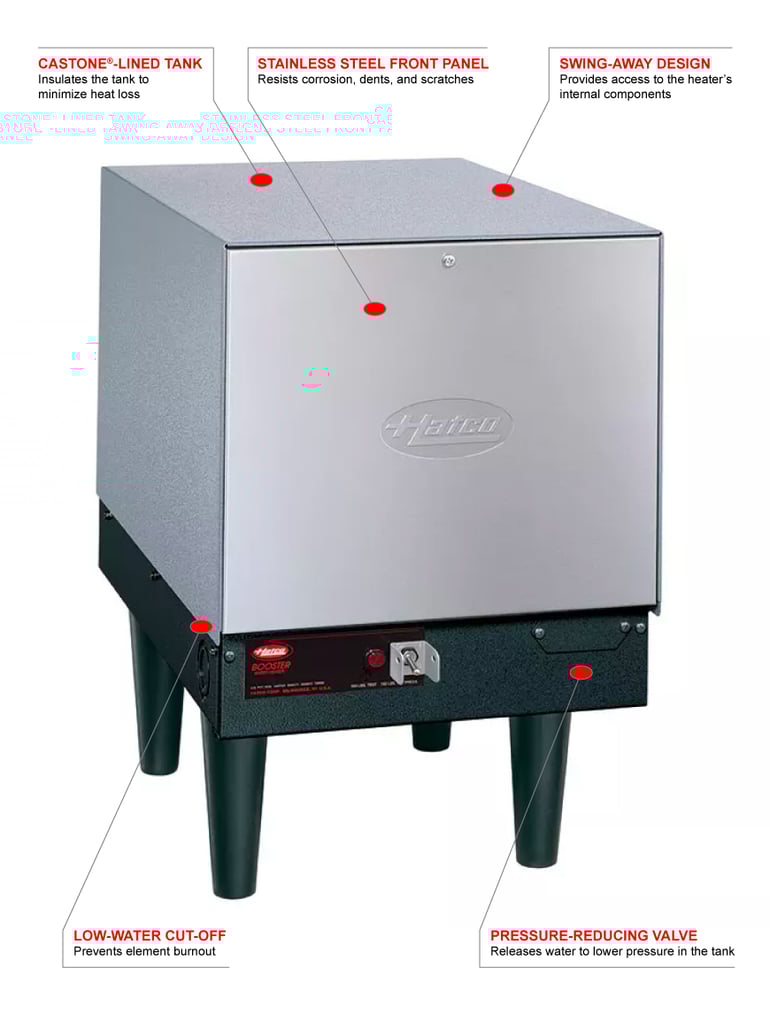

• Castone-lined tank increases the strength for high-volume use
• Fiberglass insulation minimizes heat loss from the tank
• Pilot indicator lights up when the power is on
• Pressure-reducing valve keeps the flow pressure regulated and stabilized
• Relief valve lowers pressure by releasing water from the tank when the temperature or pressure is too high
• Low-water cut-off reduces the risk of the heating element burnout by shutting off its power when water is low
• Front panel swings away for convenient access to the components
• Stainless steel construction of the front panel is heavy duty and reduces corrosion
• Powder-coated body enhances the strength of the unit
• Elevated off the floor with 6-in. non-adjustable, plastic legs

Product Features

*Free shipping on Hatco C-7 within the 48 contiguous states.

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 29.2 A, 7 kW
• 240 V/60 Hz/1 ph

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 7-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, 240v/60/1-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
