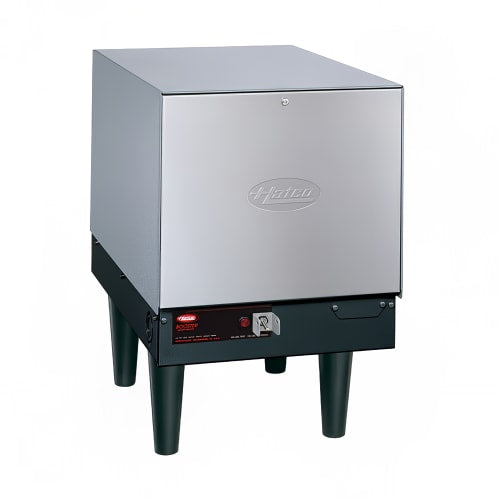

Hatco C-7 Compact Booster Water Heater, 6 Gallon, 7 kW, 208v/3ph

Product Details

• 6-gal. capacity
• Heats water to 180 degrees F for sanitizing
• Maximum 70 GPH at 40-degree-F rise
• Maximum 40 GPH at 70-degree-F rise
• Pilot indicator light
• Pressure reducing valve
• Temperature relief valve
• Low-water cut-off
• High-temperature limit control
• On/off switch
• 6-in. legs
• Slide brackets for mounting (not included)
• Probes and elements can be accessed behind swinging panel
• Front panel made of stainless steel
• Silver hammertone body
• Fiberglass insulated to prevent heat loss
• Limestone- and corrosion-resistant, Castone-lined tank
• Calibrated immersion thermostat
• ³⁄₄-in. NPT pipe
• Fittings for water inlet and outlet

Product Features

*Free shipping on Hatco C-7 within the 48 contiguous states.

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 29.1 A, 7 kW
• 208 V/60 Hz/3 ph

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 7-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, 208v/60/3-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
