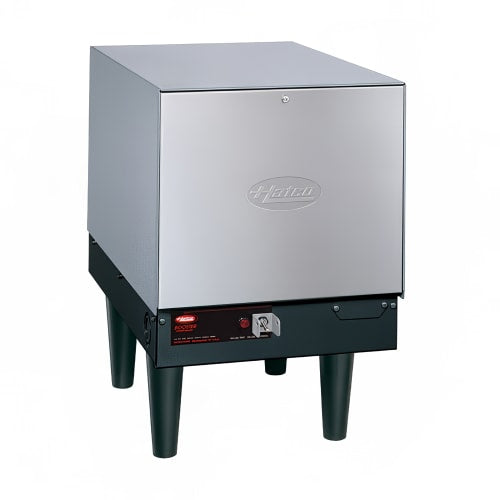

Hatco C-6 Compact Booster Water Heater, 6 Gallon, 6 kW, 240v/3ph

Product Details

• 6-gal. capacity
• Heats water to the required 180 degrees F
• Maximum 60 GPH at 40-degree-F rise
• Maximum 34 GPH at 70-degree-F rise
• Silver powder-coated hammertone body
• Stainless steel swing panel for probe and element access
• Fiberglass insulation
• Castone-lined, limescale-resistant tank
• 2 pressure gauges
• Temperature relief valve
• Pressure reducing valve
• Pilot indicator light
• High-temperature limit control
• Low-water cut-off
• Calibrated immersion thermostat
• 6-in. legs
• Mountable on sliding brackets (not included)
• On/off switch
• ³⁄₄-in. NPT pipe
• Fittings for water inlet and outlet

Dimensions & Utilities

• 13.06 in. W x 26 in. D x 19.78 in. H
• 21.6 A, 6 kW
• 240 V/60 Hz/3 ph

*Free shipping on Hatco C-6 within the 48 contiguous states.

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 6-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, 240v/60/3-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
