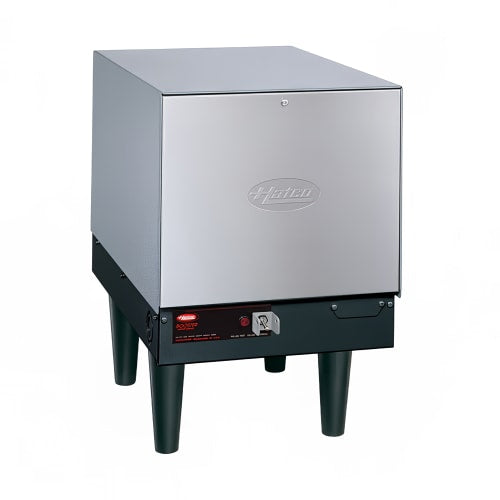

Hatco C-6 Compact Booster Water Heater, 6 Gallon, 6 kW, 240v/1ph

Product Details

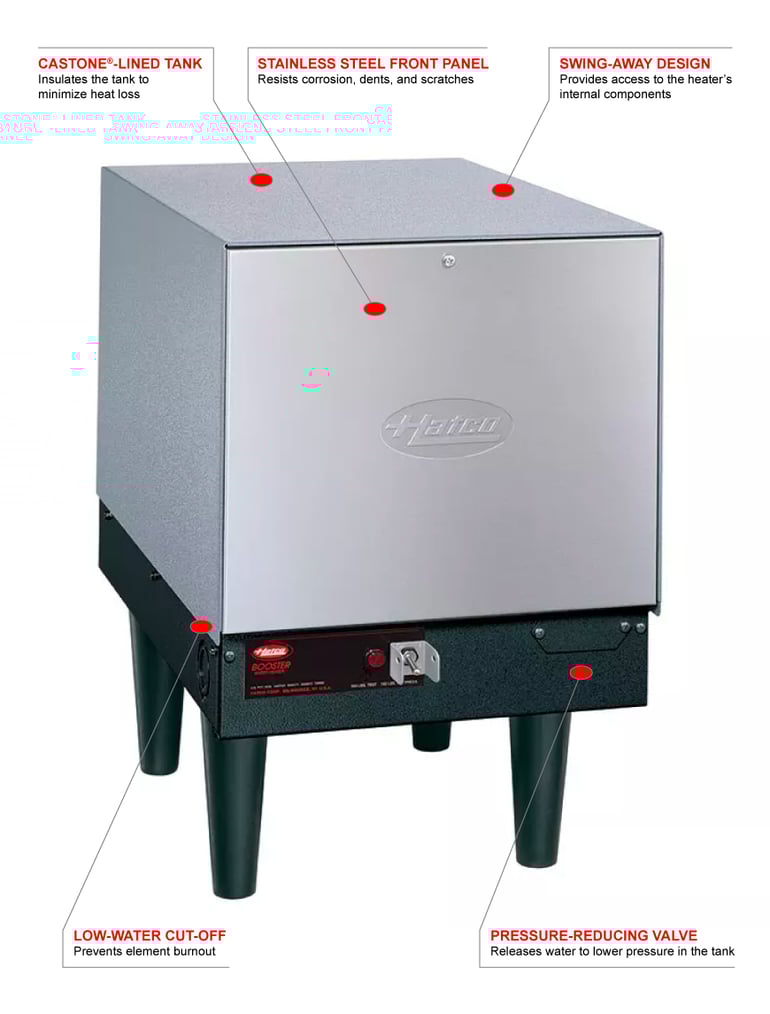

• delivers water at 180 degrees F for warewashing sanitizing cycles
• Maximum 60 GPH at 40-degree-F rise
• Maximum 34 GPH at 70-degree-F rise
• Tank has a 6-gal. storage capacity
• Castone® lining in the tank creates structure for heavy use
• Fiberglass insulation minimizes heat loss for energy conservation
• Pilot indicator light by the on/off switch illuminates when the unit is operating
• Pressure-reducing valve regulates and stabilizes flow pressure
• Temperature/pressure relief valve lowers pressure by releasing water from the tank
• Low-water cut-off shuts off power to the heating element when the water level is low, preventing element burnout
• Swing-away front panel delivers component access for maintenance
• Stainless steel front panel resists dents, scratches, and corrosion
• Body is powder coated for durability
• 6-in. plastic legs elevate integral components off the dishroom floor

Product Features

*Free shipping on Hatco C-6 within the 48 contiguous states.

Dimensions & Utilities

• 13.06 in. W x 26 in. D x 19.78 in. H
• 21.6 A, 6 kW
• 240 V/60 Hz/1 ph

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 6-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, 240v/60/1-ph, NSF, cUL, UL
