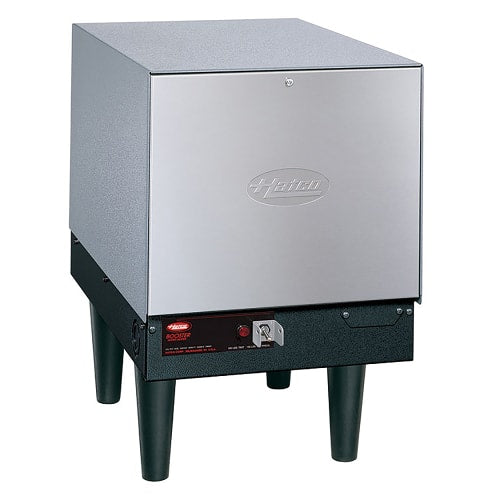

Hatco C-6 Compact Booster Water Heater, 6 Gallon, 6 kW, 208v/3ph

Product Details

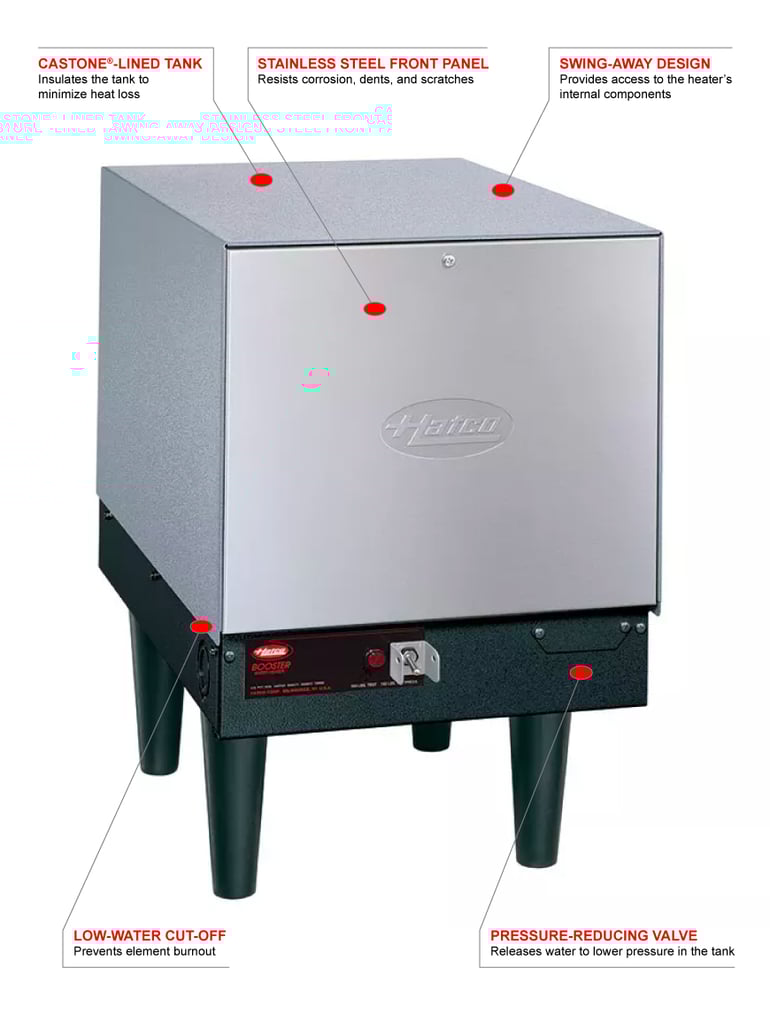

• delivers water at 180 degrees F for sanitizing dishes
• Maximum 60 GPH at 40-degree-F rise
• Maximum 34 GPH at 70-degree-F rise
• 6-gal. storage capacity
• Castone-lined tank has strength and structure for heavy use
• Fiberglass insulation minimizes heat loss
• Pilot light by the on/off switch indicates when the unit is powered on
• Pressure-reducing valve regulates and stabilizes flow pressure
• Temperature/pressure relief valve releases water to lower the pressure when it is too high
• Low-water cut-off feature reduces the risk of heating element burnout by shutting off power to the element when water levels are low
• Swing-away front panel offers convenient access to components for maintenance
• Stainless steel front panel construction prevents rust and can be cleaned with little effort
• Powder-coated body enhances strength for consistent use
• 6-in. plastic legs keep important components off the floor

Product Features

*Free shipping on Hatco C-6 within the 48 contiguous states.

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 25 A, 6 kW
• 208 V/60 Hz/3 ph

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 6-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, 208v/60/3-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
