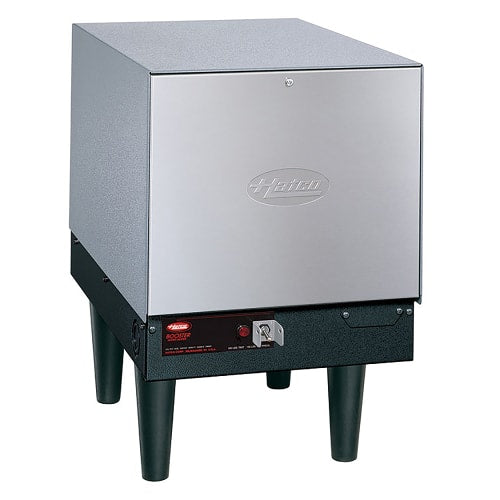

Hatco C-6 Compact Booster Water Heater, 6 Gallon, 6 kW, 208v/1ph

Product Details

• maintains water is 180 degrees F for sanitizing cycles in warewashers
• 60 GPH with 40-degree F rise
• 34 GPH with 70-degree F rise
• 6-gal. storage capacity
• Cement-like substance, called Castone, lines the tank for structure
• Fiberglass insulation traps heat in the tank
• On/off switch has an illuminating pilot light to show the power is on
• Temperature/pressure relief valve lowers pressure in the tank by releasing water
• Pressure-reducing valve regulates and stabilizes flow pressure
• Low-water cut-off prevents heating element burnout by shutting off power to the element when water levels are low
• Swing-away design of the front panel offers access for maintenance
• Stainless steel construction of the front panel prevents corrosion, dents, and scratches
• Powder-coated body increases durability for consistent use
• 6-in. plastic legs elevate the unit

Product Features

*Free shipping on Hatco C-6 within the 48 contiguous states.

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 28.9 A, 6 kW
• 208 V/60 Hz/1 ph

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 6-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, 208v/60/1-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
