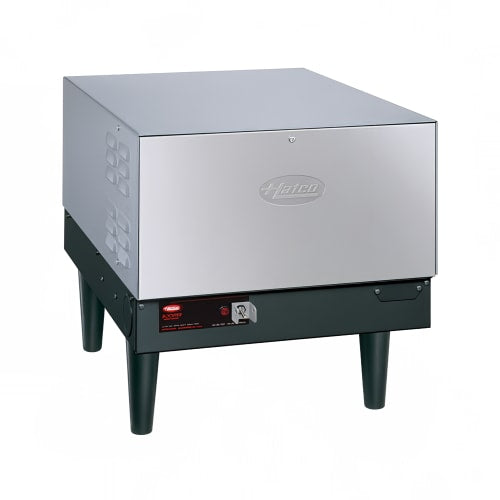

Hatco C-54 Compact Booster Water Heater, 6 Gallon, 54 kW, 480v/3ph

Product Details

• Electric booster heater with 6-gal. storage capacity
• Designed to work with professional dishwashers
• Heats water to 180 degrees F to provide proper sanitation
• delivers 542 gallons per hour with a 40 degrees F rise
• delivers 310 gallons per hour with a 70 degrees F rise

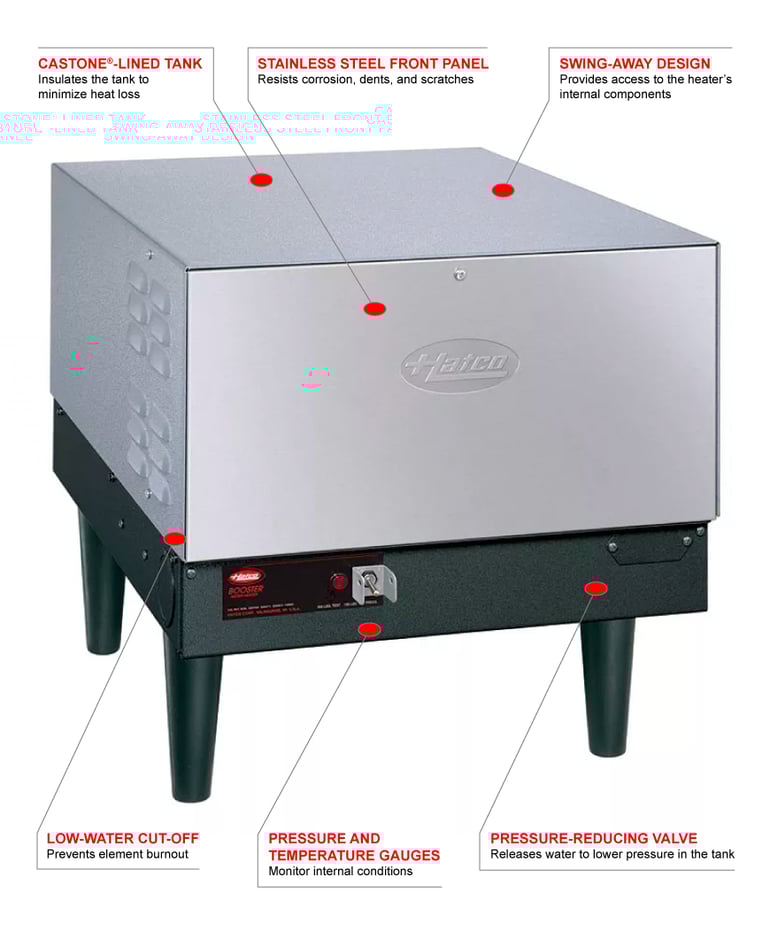

• High-temperature limit control and low-water cut-off protects unit from damage
• Easily operated with a pilot indicator light and on/off switch
• Temperature and pressure monitored and maintained with valves and gauges
• Castone liner in steel tank is non-corrosive and non-toxic
• Fiberglass insulation minimizes heat loss
• space-saving size is designed to fit easily beside or under the dishtable
• Front panels swing open to give access to controls for maintenance
• Comes standard with 6-in. legs, adjustable for customization
• Exterior constructed with a stainless steel front and a hammertone body

Product Features

*Free shipping on Hatco C-54 within the 48 contiguous states.

Dimensions & Utilities

• 18 in. W x 29¹/₄ in. D x 12³/₁₀₀ in. H (H does not include legs)
• 65 A, 54 kW
• 480 V/60 Hz/3 ph

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 54-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, 480v/60/3-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
