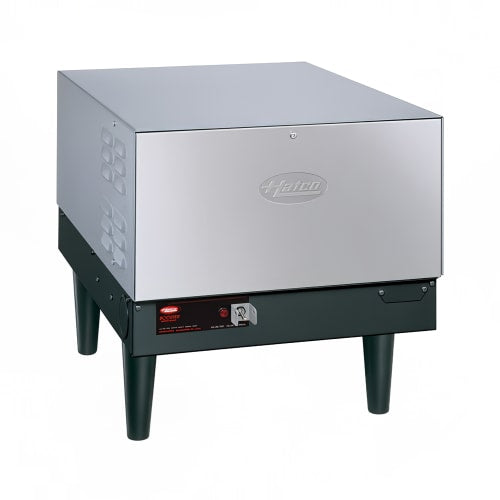

Hatco C-54 Compact Booster Water Heater, 6 Gallon, 54 kW, 208v/3ph

Product Details

• maintains water is 180 degrees F for sanitizing cycles in warewashers
• 542 GPH with 40-degree F rise
• 310 GPH with 70-degree F rise
• 6-gal. storage capacity

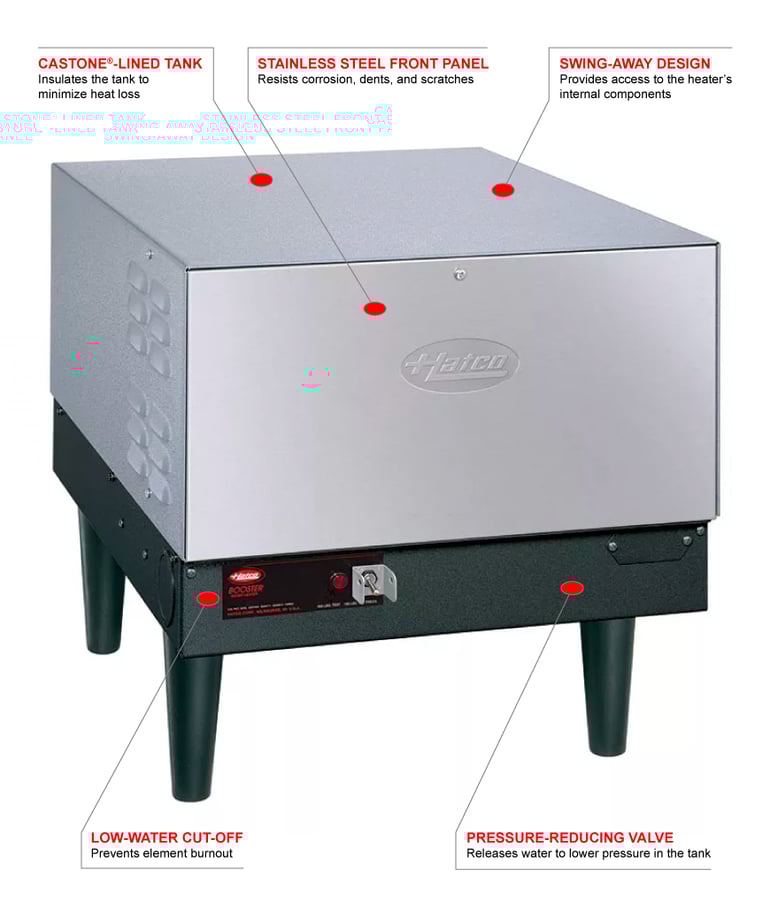

• Tank is lined with Castone®, a cement-like substance, for structure
• Fiberglass insulation minimizes heat loss
• On/off switch has a pilot light indicator that illuminates when the power is on
• Temperature/pressure relief valve releases water to lower pressure in the tank
• Pressure-reducing valve maintains flow pressure is regulated and stabilized
• Low-water cut-off shuts off power to the heating element if the water level is too low, preventing burnout
• Swing-away front panel delivers access to the internal components for maintenance
• Strong stainless steel front panel prevents rust and can withstand heavy use
• Powder-coated body enhances durability for lasting use
• 6-in. plastic legs keep the unit elevated off the dishroom floor

Product Features

*Free shipping on Hatco C-54 within the 48 contiguous states.

Dimensions & Utilities

• 18 in. W x 29⁵/₁₆ in. D x 18³/₁₀₀ in. H
• 54 kW, 149.9 A
• 208 V/60 Hz/3 ph

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 54-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, 208v/60/3-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
