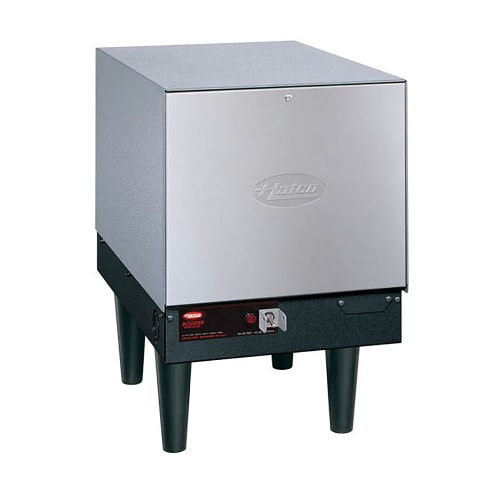

Hatco C-5 Compact Booster Water Heater, 6 Gallon, 5 kW, 480v/1ph

Product Details

• Raises water temperature to 180 degrees F for proper sanitization
• Maximum 50 GPH at 40-degree-F rise
• Maximum 29 GPH at 70-degree-F rise
• 6-gal. capacity
• Front swinging panel offers access to probes and elements for servicing
• Calibrated immersion thermostat
• Pre-wired and pre-plumbed at factory
• Durable stainless steel front
• Silver powder-coated hammertone construction is insulated with fiberglass
• Temperature relief valve
• Pilot indicator light
• On/off switch
• Pressure reducing valve
• 2 temperature gauges
• Low-water cut-off protects elements
• High-temperature limit control
• 6-in. legs
• ³⁄₄-in. NPT pipe
• Fittings for water inlet and outlet
• Slide mounting brackets available (not included)

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 10.5 A, 5 kW
• 480 V/60 Hz/1 ph

*Free shipping on Hatco C-5 within the 48 contiguous states.

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 5-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, NSF, cUL, UL, 480v/60/1ph

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
