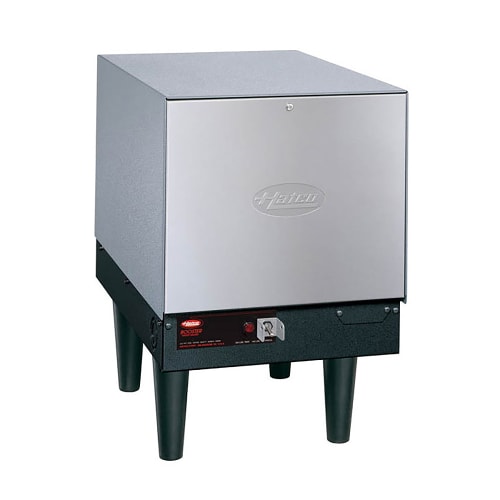

Hatco C-5 Compact Booster Water Heater, 6 Gallon, 5 kW, 240v/1ph

Product Details

• Tank water reaches 180 degrees F for proper sanitizing
• Maximum 50 GPH at 40-degree-F rise
• Maximum 29 GPH at 70-degree-F rise
• 6-gal. capacity
• Calibrated immersion thermostat
• Pilot indicator light
• Temperature relief valve
• 2 pressure gauges
• Pressure reducing valve
• Power switch
• Low-water cut-off protects unit
• High-temperature limit control
• 6-in. legs for standing
• Available brackets for mounting (not included)
• Quick access to control fuses for servicing
• Stainless steel front panel
• Powder-coated hammertone body
• Fiberglass insulation
• ³⁄₄-in. NPT pipe
• Fittings for water inlet and outlet

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 20.9 A, 5 kW
• 240 V/60 Hz/1 ph

*Free shipping on Hatco C-5 within the 48 contiguous states.

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 5-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, NSF, cUL, UL, 240v/60/1ph

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
