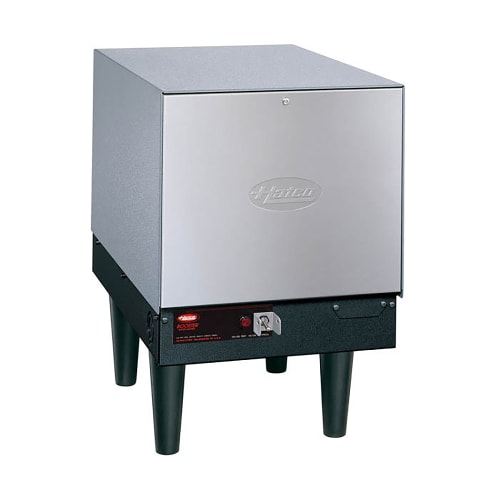

Hatco C-4 Compact Booster Water Heater, 6 Gallon, 4 kW, 480v/1ph

Product Details

• 6-gal. capacity
• space-saving design uses kitchen space effectively
• Sturdy powder-coated hammertone body
• Front panel is made of durable stainless steel
• Factory pre-plumbing and pre-wiring reduce the number of steps in the installation process
• Calibrated immersion thermostat
• Swing-away front panel gives clear access to internal components
• Low-water cut-off potentially keeps element from burning out
• Fiberglass insulation optimizes tank's heat retention
• Castone-lined tank is designed to resist corrosion
• Slide bracket option available
• features ³⁄₄-in. NPT pipe and fittings for water inlet/outlet
• Maximum 40 GPH recovery at 40-degree-F rise
• Maximum 23 GPH recovery at 70-degree-F rise

Product Features

*Free shipping on Hatco C-4 within the 48 contiguous states.

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 8.4 A, 40 kW
• 480 V/60 Hz/1 ph

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 4-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, NSF, cUL, UL, 480v/60/1ph

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
