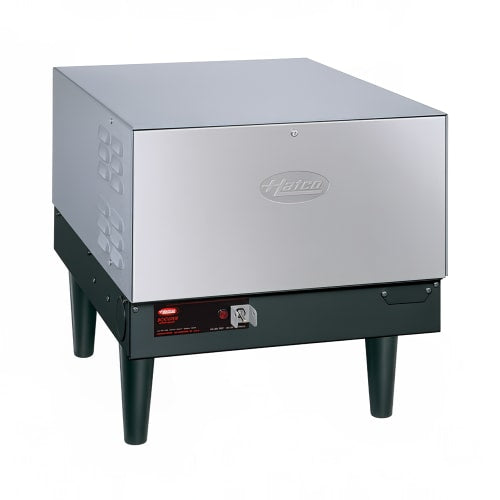

Hatco C-36 Compact Booster Water Heater, 6 Gallon, 36 kW, 480v/3ph

Product Details

• Designed to raise the temperature of rinse water temperature to 180 degrees F to properly sanitize dishes
• delivers 70-degree-F rise to water at 206 GPH
• delivers 40-degree-F rise to water at 361 GPH
• 6-gal. storage capacity
• Castone® cement lining in the tank protects against corrosion and limescale buildup
• Fiberglass insulation keeps heat inside the body
• On/off switch with a pilot indicator light
• Pre-wired with a calibrated immersion thermostat
• High-temperature limit control
• Temperature/pressure relief valve and gauges
• Pressure-reducing valve is designed to regulate and stabilize flow pressure
• Low-water cut-off feature shuts off heating element power if the water level is too low to prevent element burnout
• Stainless steel front panel has a swing-away design for access to the low-water cut-off feature, transformer, and control fuses for servicing
• Powder-coated hammertone body is heavy duty
• 6-in. plastic legs
• Can be installed under a dishtable with slide brackets (not included)

Product Features

*Free shipping on Hatco C-36 within the 48 contiguous states.

Dimensions & Utilities

• 18 in. W x 29.3125 in. D x 18.03 in. H
• 36 kW, 43.4 A
• 480 V/60 Hz/3 ph

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 36-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, 480v/60/3-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
