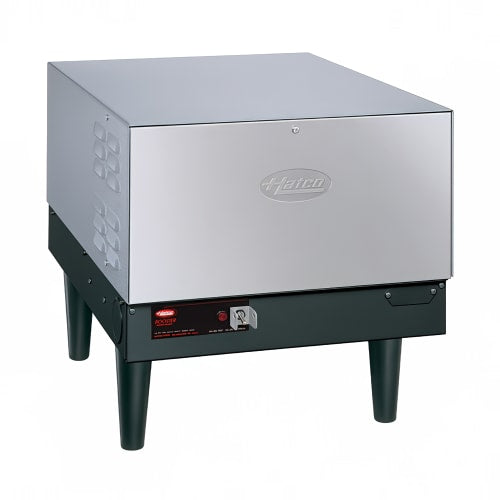

Hatco C-36 Compact Booster Water Heater, 6 Gallon, 36 kW, 208v/3ph

Product Details

• Raises the temperature of dishwashing water to 180 degrees F to sanitize dishes
• delivers 40-degree-F rise to water at 361 GPH
• delivers 70-degree-F rise to water at 206 GPH
• On/off switch and pilot indicator light
• Pre-plumbed and pre-wired with a calibrated immersion thermostat
• High-temperature limit control
• Temperature/pressure relief valve and gauges
• Pressure-reducing valve regulates and stabilizes flow pressure

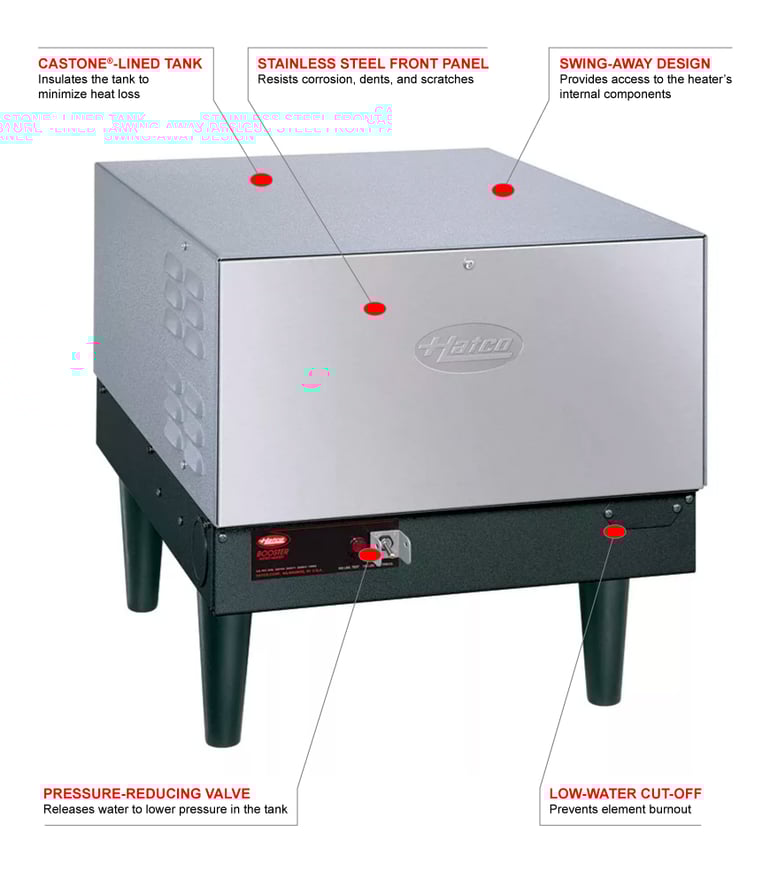

• Low-water cut-off feature shuts off power to the heating elements if the water level is too low, preventing element burnout
• Stainless steel front panel swings open for access to low-water cut-off switch, control fuses, and transformer for servicing
• Powder-coated hammertone body prevents rust
• Castone® cement-lined, 6-gal.-capacity tank
• Fiberglass insulation minimizes heat loss
• 6-in. plastic legs for floor use
• Can be installed under a dishtable with slide brackets (sold separately)

Product Features

*Free shipping on Hatco C-36 within the 48 contiguous states.

Dimensions & Utilities

• 18 in. W x 29⁵/₁₆ in. D x 18³/₁₀₀ in. H
• 36 kW, 100 A
• 208 V/60 Hz/3 ph

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 36-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, 208v/60/3-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
