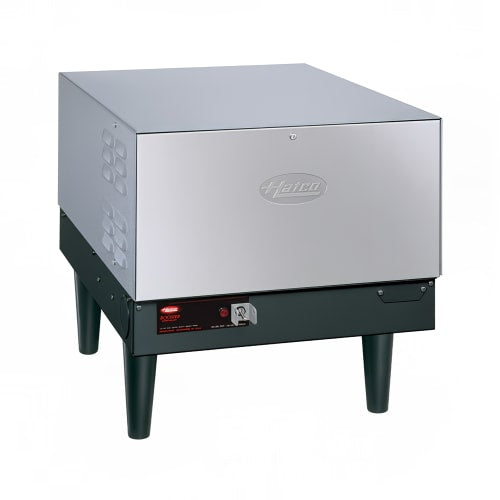

Hatco C-27 Compact Booster Water Heater, 6 Gallon, 27 kW, 480v/3ph

Product Details

• 6-gal. capacity
• space-saving design frees up kitchen space
• Stainless steel front panel and powder-coated hammertone body
• Factory pre-plumbing and pre-wiring support quick setup
• Calibrated immersion thermostat
• Swing-away front panel delivers component access
• Low-water cut-off keeps element from burning out
• Fiberglass insulation limits heat loss
• Castone-lined tank holds up against corrosion
• 6-in. legs
• Slide bracket option available
• features ³⁄₄-in. NPT pipe and fittings for water inlet/outlet
• Maximum 271 GPH recovery at 40-degree-F rise
• Maximum 155 GPH recovery at 70-degree-F rise

Product Features

*Free shipping on Hatco C-27 within the 48 contiguous states.

Dimensions & Utilities

• 18 in. W x 29¹/₄ in. D x 18³/₁₀₀ in. H
• 32.5 A, 27 W
• 480 V/60 Hz/3 ph

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 27-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
