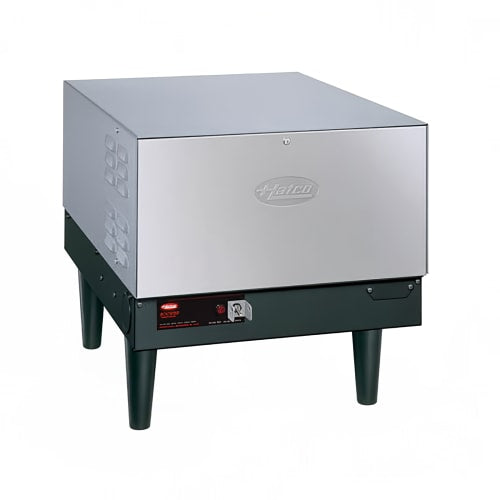

Hatco C-27 Compact Booster Water Heater, 6 Gallon, 27 kW, 240v/1ph

Product Details

• 6-gal. capacity
• Water is heated to 180 degrees F for sanitation purposes
• Maximum 271 GPH at 40-degree-F rise
• Maximum 155 GPH at 70-degree-F rise
• Calibrated immersion thermostat
• Low-water cut-off for element protection
• High-temperature limit control
• On/off switch
• Pilot indicator light
• Pressure-reducing valve
• 2 temperature and pressure gauges
• Temperature and pressure relief valve
• 6-in. legs
• Slide mounting brackets (sold separately)
• Stainless steel front panel
• Panel swings off for control access
• Hammertone-finished body is silver powder coated for corrosion resistance
• Fiberglass insulation
• Castone liner
• ³⁄₄-in. NPT pipe
• Fittings for inlet and outlet

Dimensions & Utilities

• 18 in. W x 29¹/₄ in. D x 18³/₁₀₀ in. H
• 112.5 A, 27 kW
• 240 V/60 Hz/1 ph

*Free shipping on Hatco C-27 within the 48 contiguous states.

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 27-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, NSF, cUL, UL, 240v/60/1ph

*Image may not depict product color, inclusions or accessories.
