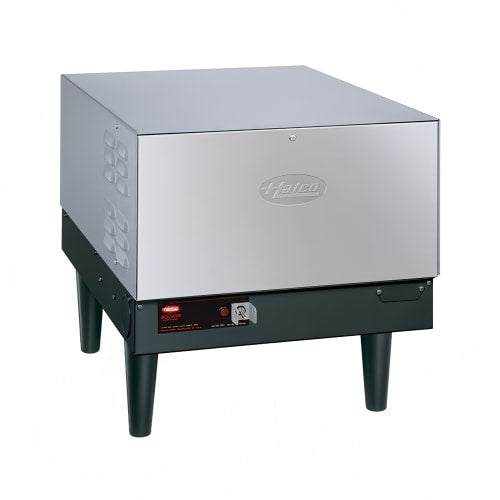

Hatco C-27 Compact Booster Water Heater, 6 Gallon, 27 kW, 208v/3ph

Product Details

• delivers rinse water at 180 degrees F to properly sanitize and flash-dry items
• Maximum 155 GPH at 70-degree-F rise
• Maximum 271 GPH at 40-degree-F rise
• Castone®-lined tank has 6-gal. storage capacity
• Fiberglass insulation prevents heat escape
• On/off switch has a pilot indicator light
• 2 temperature/pressure gauges enable operators to monitor tank levels
• Temperature/pressure relief valve lowers pressure by releasing water if either level is too high
• Pressure-reducing valve regulates and stabilizes flow pressure
• Low-water cut-off valve shuts off power to the element if water levels are too low, preventing burnout
• Swing-away design on stainless steel front panel delivers component access
• Body is powder coated for durability in high-volume settings
• 6-in. plastic legs elevate the unit off floors

Product Features

*Free shipping on Hatco C-27 within the 48 contiguous states.

Dimensions & Utilities

• 18 in. W x 29¹/₄ in. D x 18³/₁₀₀ in. H
• 75 A, 27 kW
• 208 V/60 Hz/3 ph

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 27-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, 208v/60/3-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
