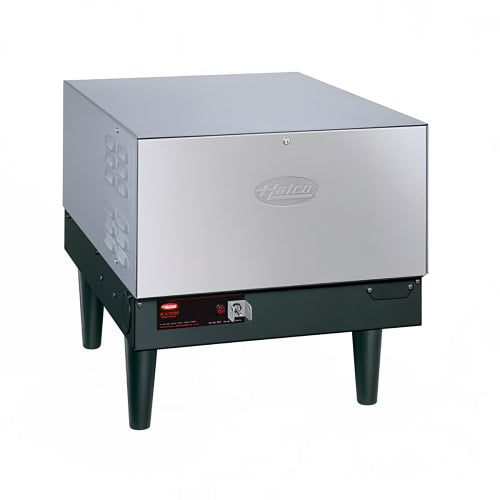

Hatco C-27 Compact Booster Water Heater, 6 Gallon, 27 kW, 208v/1ph

Product Details

• 6-gal. storage capacity
• Water gets to the 180 degrees F required for sanitation
• Maximum 271 GPH at 40-degree-F rise
• Maximum 155 GPH at 70-degree-F rise
• 6-in. legs
• Slide mounting brackets (sold separately)
• Low-water cut-off
• High-temperature limit control
• Calibrated immersion thermostat
• Pressure-reducing valve
• 2 temperature and pressure gauges
• Temperature and pressure relief valve
• Pilot indicator light
• On/off switch
• Stainless steel front panel
• Front panel swings out to reveal control fuses and probe access
• Fiberglass insulation
• Hammertone, powder-coated silver body
• Castone-lined tank collects limestone slowly
• ³⁄₄-in. NPT pipe
• Fittings for inlet and outlet

Dimensions & Utilities

• 18 in. W x 29¹/₄ in. D x 18³/₁₀₀ in. H
• 129.9 A, 27 kW
• 208 V/60 Hz/1 ph

*Free shipping on Hatco C-27 within the 48 contiguous states.

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 27-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, NSF, cUL, UL, 208v/60/1ph

*Image may not depict product color, inclusions or accessories.
