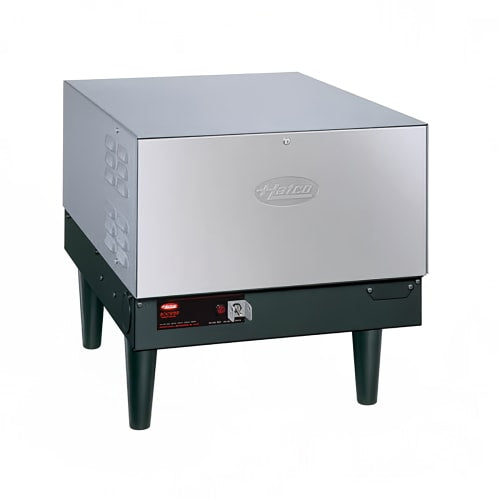

Hatco C-24 Compact Booster Water Heater, 6 Gallon, 24 kW, 480v/3ph

Product Details

• Maximum 241 GPH at 40-degree-F rise
• Maximum 138 GPH at 70-degree-F rise
• 6-gal. water capacity
• Water is heated to 180 degrees F and ready to sanitize dinnerware
• Available slide mounting brackets (sold separately)
• 6-in. legs
• Swinging stainless steel front panel
• Silver powder-coated hammertone surface
• Fiberglass insulation
• Castone-lined tank prevents corrosion
• Transformer and control fuses
• Accessible elements and probes
• Pressure-reducing valve
• Low-water cut-off
• Pilot indicator light
• High-temperature limit control
• Power switch
• Temperature and pressure relief valve
• Calibrated immersion thermostat
• 2 pressure and temperature gauges
• Fittings for inlet and outlet
• ³⁄₄-in. NPT pipe

Dimensions & Utilities

• 18 in. W x 29¹/₄ in. D x 18³/₁₀₀ in. H
• 28.9 A, 24 kW
• 480 V/60 Hz/3 ph

*Free shipping on Hatco C-24 within the 48 contiguous states.

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 24-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, NSF, cUL, UL, 480v/60/3ph

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
