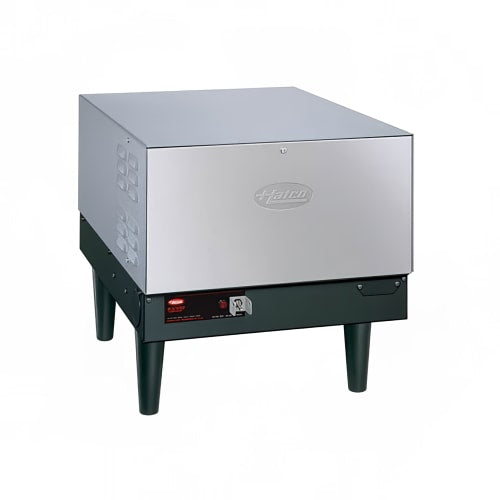

Hatco C-24 Compact Booster Water Heater, 6 Gallon, 24 kW, 240v/3ph

Product Details

• Holds 6 gal. of hot water
• Water reaches 180 degrees F for sanitation and flash-drying
• Maximum 241 GPH at 40-degree-F rise
• Maximum 138 GPH at 70-degree-F rise
• Low-water cut-off prevents burnout
• High-temperature limit control
• Pressure-reducing valve
• Temperature and pressure relief valve
• Calibrated immersion thermostat
• Power switch
• 2 temperature and pressure gauges
• Pilot indicator light
• Control fuses and transformer with accessible probes and elements
• Fiberglass insulation
• Castone-lined tank for limestone prevention
• Hammertone silver powder coating
• Swinging panel made of stainless steel
• Slide brackets for mounting (sold separately)
• 6-in. legs included
• Fittings for inlet and outlet
• ³⁄₄-in. NPT pipe

Dimensions & Utilities

• 18 in. W x 29¹/₄ in. D x 18³/₁₀₀ in. H
• 57.8 A, 24 kW
• 240 V/60 Hz/3 ph

*Free shipping on Hatco C-24 within the 48 contiguous states.

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 24-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, NSF, cUL, UL, 240v/60/3ph

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
