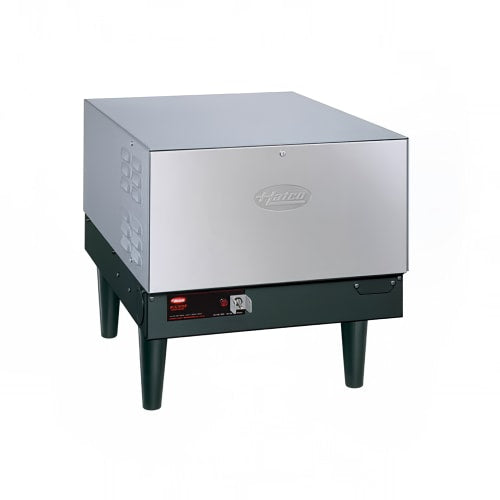

Hatco C-24 Compact Booster Water Heater, 6 Gallon, 24 kW, 240v/1ph

Product Details

• 6-gal. water capacity
• Water reaches 180 degrees F for sanitation
• Maximum 241 GPH at 40-degree-F rise
• Maximum 138 GPH at 70-degree-F rise
• Features a durable powder-coated hammertone surface and a stainless steel front panel
• Insulated with fiberglass
• Tank lined with Castone to prevent corrosion
• Low-water cut-off protects elements
• High-temperature limit control
• Calibrated immersion thermostat
• Factory plumbed and wired
• Access to control fuses, transformer, probes, and elements
• 6-in. legs
• Mountable on slide brackets (sold separately)
• Temperature and pressure relief valve
• Pressure-reducing valve
• 2 temperature and pressure gauges
• Pilot indicator light
• On/off switch
• ³⁄₄-in. NPT pipe
• Fittings for inlet and outlet

Dimensions & Utilities

• 18 in. W x 29¹/₄ in. D x 18³/₁₀₀ in. H
• 100 A, 24 kW
• 240 V/60 Hz/1 ph

*Free shipping on Hatco C-24 within the 48 contiguous states.

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 24-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, NSF, cUL, UL, 240v/60/1ph

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
