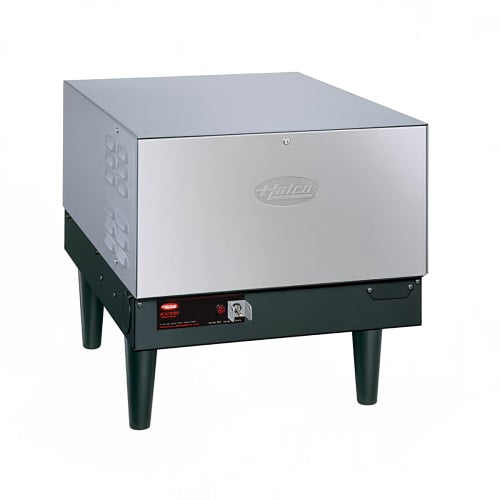

Hatco C-24 Compact Booster Water Heater, 6 Gallon, 24 kW, 208v/60/1ph

Product Details

• 6-gal. tank capacity
• Maximum 241 GPH at 40-degree-F rise
• Maximum 138 GPH at 70-degree-F rise
• delivers 180-degree-F water
• Temperature and pressure relief valve
• 2 temperature and pressure gauges
• Power switch
• Calibrated immersion thermostat
• Pressure-reducing valve
• High-temperature limit control
• Low-water cut-off
• Pre-plumbed and pre-wired
• Transformer and control fuses
• Probes and elements are highly accessible
• Powder-coated hammertone finish on a body insulated with fiberglass
• Stainless steel swing-away front panel
• Castone-lined tank prevents corrosion
• Slide brackets for mounting (sold separately)
• features 6-in. legs
• Fittings for inlet and outlet
• ³⁄₄-in. NPT pipe

Dimensions & Utilities

• 18 in. W x 29¹/₄ in. D x 18³/₁₀₀ in. H
• 115.4 A, 24 kW
• 208 V/60 Hz/1 ph

*Free shipping on Hatco C-24 within the 48 contiguous states.

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 24-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, NSF, cUL, UL, 208v/60/1ph

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
