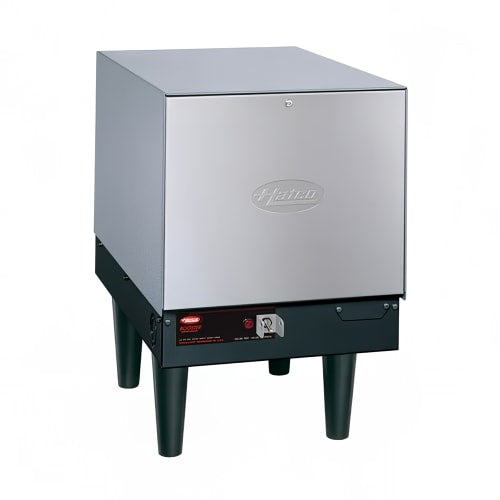

Hatco C-18 Compact Booster Water Heater, 6 Gallon, 18 kW, 240v/3ph

Product Details

• Maximum 181 GPH at 40-degree-F rise
• Maximum 103 GPH at 70-degree-F rise
• 6-gal. storage capacity
• 2 temperature and pressure gauges
• Pressure and temperature relief valve
• Pressure-reducing valve
• Pilot indicator light
• On/off switch
• Prevents burnout with low-water cut-off
• High-temperature limit control
• Reaches optimal sanitation temperatures
• Swing-away front panel
• Panel made of durable stainless steel
• Control fuses and transformer
• Accessible probes and elements
• Fiberglass insulation
• Castone-lined tank delivers corrosion protection
• Hammertone finish with silver powder coating
• Slide mounting brackets (sold separately)
• 6-in. legs
• Calibrated immersion thermostat
• Factory plumbed and wired
• Fittings for inlet and outlet
• ³⁄₄-in. NPT pipe

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 43.4 A, 18 kW
• 240 V/60 Hz/3 ph

*Free shipping on Hatco C-18 within the 48 contiguous states.

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 18-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, NSF, cUL, UL, 240v/60/3ph

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
