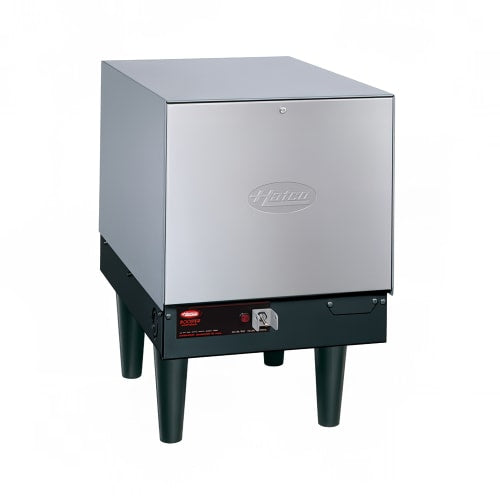

Hatco C-15 Compact Booster Water Heater, 6 Gallon, 15 kW, 240v/1ph

Product Details

• Maximum 151 GPH at 40 degree-F rise
• Maximum 86 GPH at 70 degree-F rise
• 6-gal. tank capacity
• Boosts running water to 180 degrees F for sanitation
• 6-in. legs for standalone usage
• Slide brackets for mounting (sold separately)
• Swing-away stainless steel front panel delivers convenient access to probes and elements
• Control fuses and transformer
• Fiberglass insulation
• Silver powder-coated hammertone on the body
• Castone-lined tank prevents limestone buildup and corrosion
• Pre-plumbed and pre-wired
• Calibrated immersion thermostat
• Low-water cut-off prevents burnout
• Pressure-reducing valve
• Temperature and pressure relief valve
• High-temperature limit control
• Pilot indicator light
• On/off switch
• ³⁄₄-in. NPT pipe
• Fittings for inlet and outlet

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 62.5 A, 15 kW
• 240 V/60 Hz/1 ph

*Free shipping on Hatco C-15 within the 48 contiguous states.

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 15-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, 240v/60/1-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
