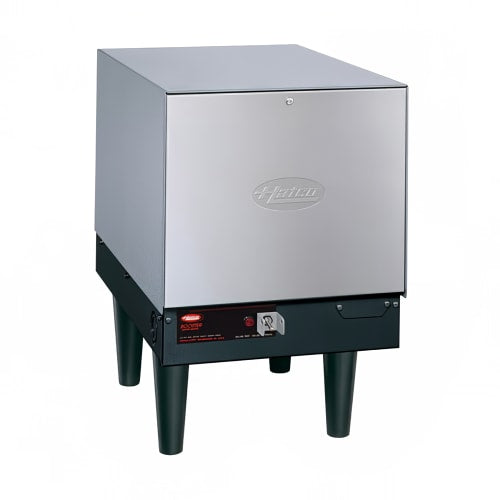

Hatco C-13 Compact Booster Water Heater, 6 Gallon, 13 1/2 kW, 240v/1ph

Product Details

• 6-gal. tank capacity
• Maximum 135 GPH at 40 degree-F rise
• Maximum 77 GPH at 70 degree-F rise
• Castone liner prevents limestone buildup
• Constructed of powder-coated silver hammertone
• Durable stainless steel swing-away front panel
• Fiberglass insulation
• Mountable under dishtable with slide brackets (sold separately)
• 6-in. legs
• Pre-plumbed and pre-wired in factory
• Calibrated immersion thermostat
• Temperature and pressure relief valve
• Pressure-reducing valve
• 2 temperature and pressure gauges
• On/off switch
• Pilot indicator light
• High-temperature limit control prevents unit from overheating
• Low-water cut-off
• ³⁄₄-in. NPT pipe
• Fittings for inlet and outlet

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 56.3 A, 13.5 kW
• 240 V/60 Hz/1 ph

*Free shipping on Hatco C-13 within the 48 contiguous states.

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 13.5-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, NSF, cUL, UL, 240v/60/1ph

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
