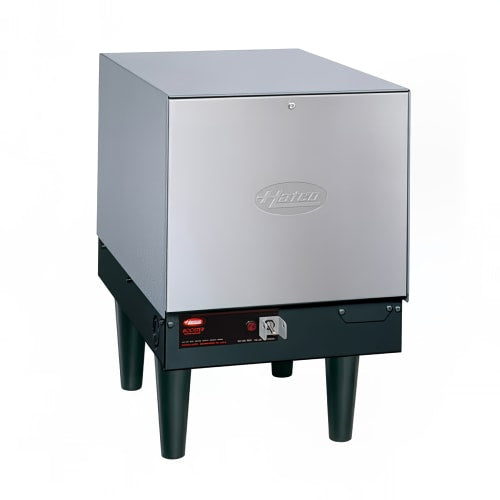

Hatco C-13 Compact Booster Water Heater, 6 Gallon, 13 1/2 kW, 208v/1ph

Product Details

• 6-gal. capacity
• Maximum 135 GPH at 40 degree-F rise
• Maximum 77 GPH at 70 degree-F rise
• Heats water to 180 degrees F for sanitation
• Slide brackets for installation under dishtable (sold separately)
• 6-in. legs
• Temperature and pressure relief valve
• Pressure-reducing valve
• High-temperature limit control
• On/off switch
• 2 temperature and pressure gauges
• Pilot indicator light
• Low-water cut-off prevents element burnout
• Calibrated immersion thermostat
• Swing-away front panels
• Control fuses and transformer
• Stainless steel front
• Power-coated silver hammertone body
• Castone-lined tank helps prevent corrosion
• ³⁄₄-in. NPT pipe and fittings for inlet and outlet

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 65 A, 13.5 kW
• 208 V/60 Hz/1 ph

*Free shipping on Hatco C-13 within the 48 contiguous states.

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 13.5-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, NSF, cUL, UL, 208v/60/1ph

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
