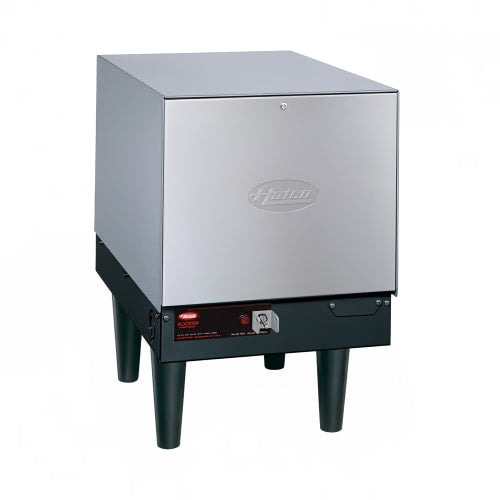

Hatco C-12 Compact Booster Water Heater, 6 Gallon, 12 kW, 208v/1ph

Product Details

• Increases temperature of rinse water to 180 degrees F to sanitize items in the warewasher
• Maximum 69 GPH at 70-degree-F rise
• 6-gal. storage capacity
• Tank is lined with Castone
• Fiberglass insulation helps prevent heat loss
• On/off switch features a pilot indicator light
• Temperature/pressure relief valve releases water to lower the pressure in the tank if the temperature or pressure is too high
• 2 temperature and pressure gauges monitor levels in the tank
• Pressure-reducing valve regulates and stabilizes flow pressure
• Pre-plumbed and pre-wired with a calibrated immersion thermostat and high-temperature limit switch
• Low-water cut-off feature prevents element burnout that could occur because of low water condition
• Stainless steel front panel prevents rust, dents, and scratches
• Panel's swing-away design delivers access to the components for maintenance
• Durable powder-coated body is built for high-volume use
• 6-in. plastic legs keep the unit elevated off the floor

Product Features

*Free shipping on Hatco C-12 within the 48 contiguous states.

Dimensions & Utilities

• 13.06 in. W x 20.69 in. D x 19.78 in. H
• 12 kW, 57.7 A
• 208 V/60 Hz/1 ph

From The Manufacturer

space-saving Booster Heater, electric, 6-gallon storage capacity, electric operation, 12-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, 208v/60/1-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
