Vulcan VICM48 48" Gas Cheese Melter w/ Infrared Burner, Stainless, Natural Gas

Product Details

• Part of the VICM series
• 2 heavy-duty, pre-mix atmospheric infrared burners
• Standing pilot ignition system
• Chrome-plated grid rack with 3 adjustable positions
• 2 removable, full-width spillage pans
• Front, top, bottom, and sides made of stainless steel
• Welded stainless and aluminized steel chassis
• Wall-mounting brackets
• Rear clearance: 2 in.
• Side clearances: 20 in.
• Bottom clearance: 10 in. (combustible) or 4 in. (noncombustible)
• 40,000 BTU

Product Features

*Free shipping on Vulcan VICM48 within the 48 contiguous states.

Dimensions & Utilities

• Interior: 46¹/₅ in. W x 15²/₂₅ in. D x 10¹/₅ in. H
• Overall: 48in. W x 18⁶¹/₁₀₀ in. D x 23³/₁₀₀ in. H
• Uses natural gas
• ³⁄₄-in. rear gas connection and gas pressure regulator

From The Manufacturer

Cheesemelter, natural gas, 48", (2) infrared burners, 3-position heavy duty rack, removable pan, stainless steel interior, features: wall mount panel, 40,000 BTU, NSF, CSA Star, CSA Flame

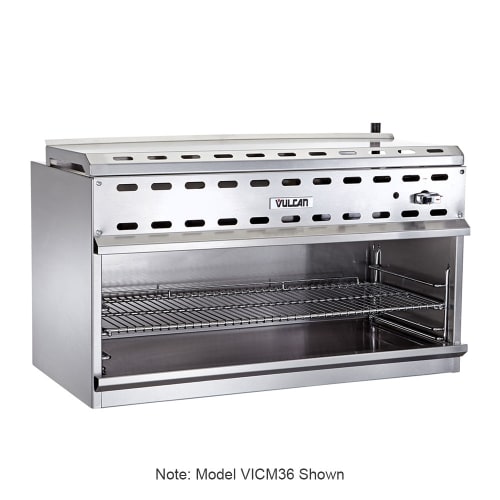

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Catalog
