Vulcan VG30 30 gal. Tilt Skillet - Open Base, Includes Faucet, Strainer, Natural Gas

Product Details

• 30-gal. capacity
• (1) 30,000-BTU burner per 12-in. pan width
• Front-hinged, polished stainless steel pan is durable and rust resistant

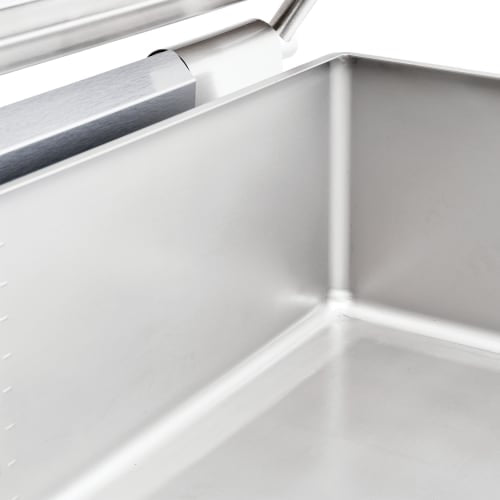

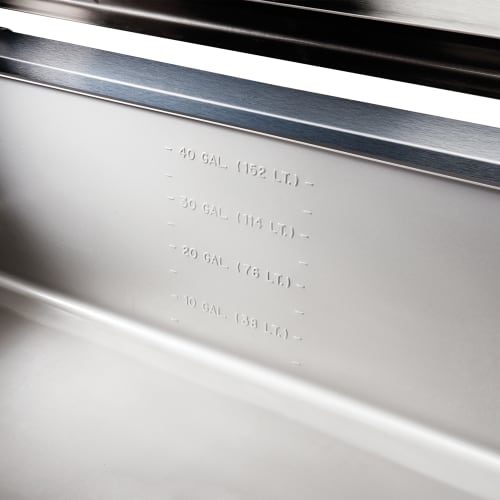

• Pan body contains embossed gallon markings and coved interior corners
• Steel plate is bonded to durable stainless steel cooking surface
• Full-width, 4-in. return flange constructed with formed pouring lip and removable strainer
• Stainless steel, spring-assisted cover equipped with wrap around, cool-to-the-touch handle and condensate lip
• Lid stops in place, accommodating vented cooking applications
• Field-reversible faucet mounting bracket is non-enclosed with L-bracket at either side
• Drop-away food receiving pan support mounted under pouring lip
• Manually operated anti-jam pan tilting mechanism features removable handle
• Approximately 30 crank revolutions fully tilts the pan and completely empties its contents
• Burners shut off when pan tilts 5 degrees
• Automatic burner lighting provided by electronic ignition system
• Temperature range: 50-425 degrees F
• Enclosures and controls are watertight
• Front, sides, and back constructed of stainless steel
• 12-in. legs come with adjustable flanged feet
• Combination built-in regulator with gas valve

Product Features

*Free shipping on Vulcan VG30 within the 48 contiguous states.

Dimensions & Utilities

• Cooking surface area: 29 in. x 23 in.
• Maximum pan opening: 31 in. x 28 in.
• Overall: 36 in. W x 35¹⁄₂ in. D x 40¹⁄₂ in. H
• Uses natural gas
• ³⁄₄-in. rear gas connection
• 120 V/60 Hz/1 ph

From The Manufacturer

Braising Pan, natural gas, 30-gallon capacity, 36" wide open base, manual tilt, 9" deep stainless steel pan with gallon markings, pouring lip & removable strainer, spring assist cover with drip edge, pan holder, solid state control, features L faucet bracket, electric ignition, 12" stainless steel legs with adjustable flanged feet, 90,000 BTU, CSA Flame, CSA Star, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Service Manual
• Parts Breakdown
• Manual
• Installation Guide
• Brochure
• Catalog
