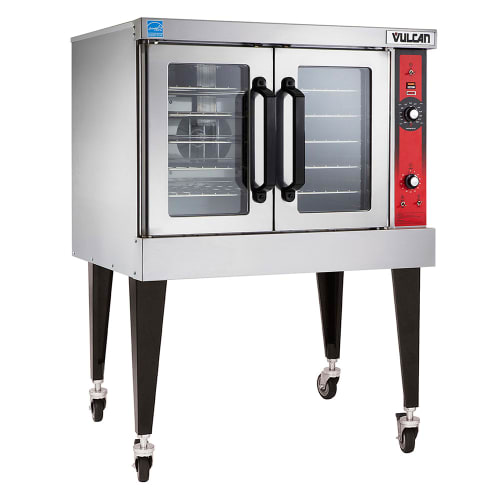

Vulcan VC5ED Single Full Size Electric Convection Oven - 12 1/2 kW, 240v/1ph

Product Details

• Stainless steel top, doors, front, and sides are durable

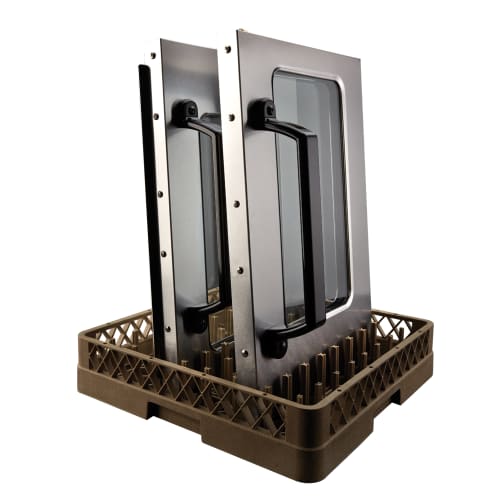

• Independent doors have double-pane glass windows
• Insulation resists sagging and increases energy efficiency
• Porcelain-enameled steel interior helps prevent food buildup
• Interior light maintains food is visible
• 5 durable, nickel-plated oven racks
• 11 rack positions with rack stops
• Solid-sheathed heating elements
• 2-speed blower circulates heat through the oven
• Cooldown switch for rapidly removing heat from the interior
• Dial temperature control with digital display
• Temperature range: 150-500 degrees F
• Gentle cooking mode reduces heat intensity
• 5-hr. countdown timer with alarm
• Self-diagnostics troubleshoot problems as they arise
• Painted, 23³⁄₄-in.-tall legs
• Required clearances: 2 in. on back, 4 in. on right, 1 in. on left

Dimensions & Utilities

• Racks: 28¹/₄ in. W x 20¹/₂ in. D
• Interior: 29 in. W x 22¹/₈ in. D x 20 in. H
• Overall: 40¹/₁₀ in. W x 40 in. D x 54 in. H
• 52 A, 12.5 kW, ¹⁄₂ HP
• 240 V/60 Hz/1 ph

*Free shipping on Vulcan VC5ED within the 48 contiguous states.

From The Manufacturer

Convection Oven, electric, single-deck, standard depth, solid state controls, 5-hour timer with digital display enhancement, 150° to 500°F temperature range, (5) oven racks per deck, independently operated removable doors with double pane windows, porcelain on steel interior, interior light, stainless steel front, top, sides & 23-3/4" legs, 1/2 HP blower motor, 12.5kW, NSF, UL, ENERGY STAR®

Specifications

Documents

• Spec Sheet
• Warranty
• Service Manual
• Parts Breakdown
• Manual
• Brochure
• Catalog
