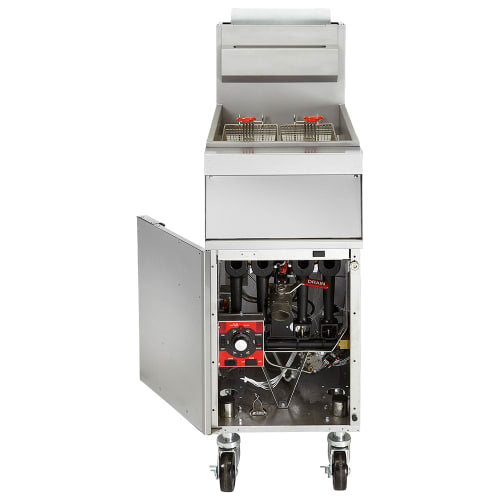

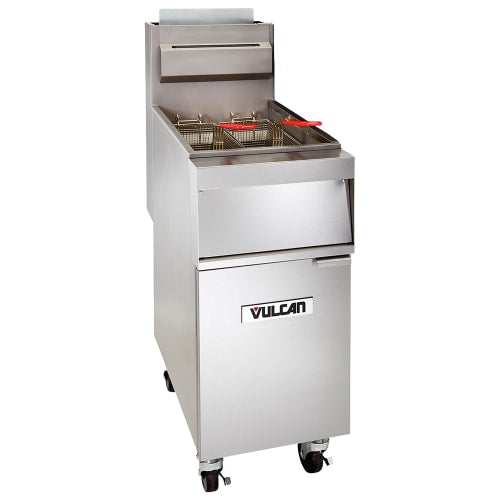

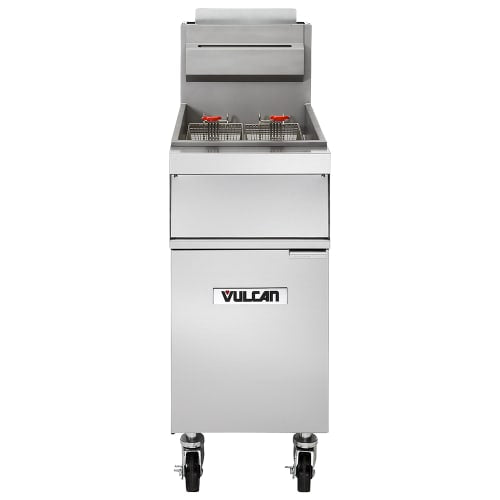

Vulcan 1GR35M Gas Fryer - (1) 40 lb Vat, Floor Model, Natural Gas

Product Details

• Heated by natural gas
• Millivolt thermostat control has a temperature range of 200-400 degrees F
• 35-40-lb. oil capacity fry tank
• 14 in. x 14 in. fry tank
• V-shaped cold zone enables sediment to fall under the burners to prevent them from burning and changing the flavor of the oil
• Tank brush is used to clean out the fry tank
• Crumb scoop enables the operator to remove debris
• Clean-out rod for breaking apart particles
• Stainless steel construction makes the unit heavy duty and resistant to minor damage
• 1¹⁄₄-in. full port ball type drain valve
• (4) 6-in. casters are adjustable and 2 lock in place
• Twin fry baskets have plastic-coated handles to protect hands from burns
• 3 heat exchange tubes are easy to clean due to how they are positioned
• High-limit shut-off valve turns off the gas flow if temperatures exceed the safe limit
• Gas shut off valve and pilot safety system
• Requires 6 in. of clearance on the sides and rear
• 16-in. clearance from open top burners required
• 90,000 BTU
• Overall Dimensions: 15¹⁄₂ in. W x 30¹⁄₄ in. D x 47¹⁄₈ in. H

*Free shipping on Vulcan 1GR35M within the 48 contiguous states.

From The Manufacturer

Fryer, natural gas, 15-1/2" W, free-standing, 35-40 lb. capacity, millivolt thermostat controls, twin baskets, stainless steel cabinet and fry tank, 6" adjustable casters (2 swivel locking & 2 non-locking), 90,000 BTU, CSA Star, CSA FLame, NSF

*Image may not depict product color, inclusions or accessories.
