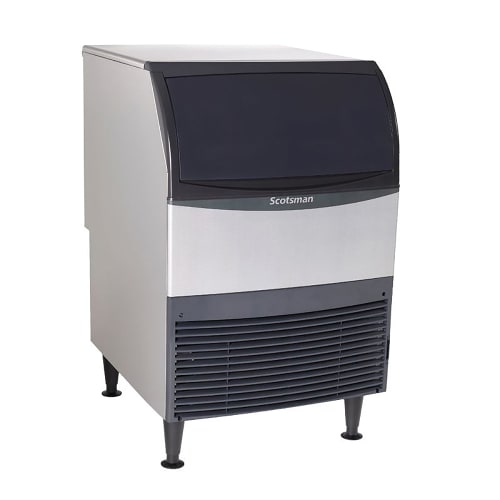

Scotsman UC2024SA-1 24"W Half Cube Undercounter Ice Machine - 227 lbs/day, Air Cooled, Gravity Drain, 115v
With the Scotsman UC2024SA-1 undercounter ice machine, users can produce as much as 227 lbs ice each day for their bar or restaurant. Its compartment accommodates 80 lbs ice at a time. To scoop ice from the compartment, users can push back the ergonomic door. The Scotsman UC2024SA-1 ice maker has an air cooling condenser that uses R-134A refrigerant. This refrigeration system breathes from the front, so operation eliminates the need for side clearances. Its recessed utility chase removes rear clearance requirements, so users can install the unit where convenient. *Free shipping on Scotsman UC2024SA-1 within the 48 contiguous states. Undercounter Ice Maker With Bin, 24"W, cube style, air-cooled, self-contained condenser, production capacity up to 227 lb/24 hours at 70°/50° (174 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, ergonomic slide-back door, recessed utility chase, front accessible external removable air filter, alluminum alloy side panels, small cube size, R-134A refrigerant, includes 6" legs, 24"W x 28.5"D x 39"H, 115v/60/1-ph, 15 amps, NSF, cULus, Made in USA, AHRI Certified Watch a video about this product Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries. Important Prop 65 information for California residents.
Product Details
- 227-lb. maximum daily ice production
- 174-lb. AHRI-certified daily ice production
- Produces small-cube ice
- Ice size: 7⁄8 in. L x 7⁄8 in. W x 3⁄8 in. H
- Storage bin holds 80 lbs.

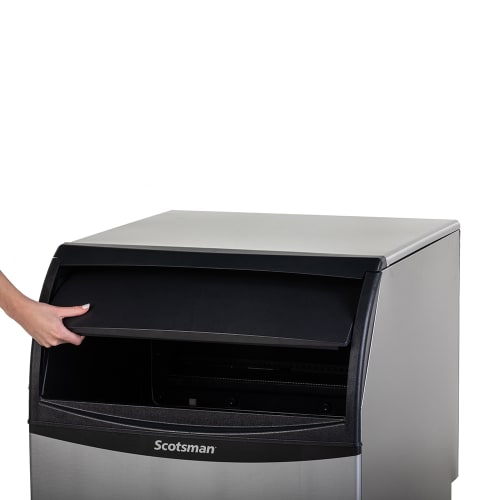

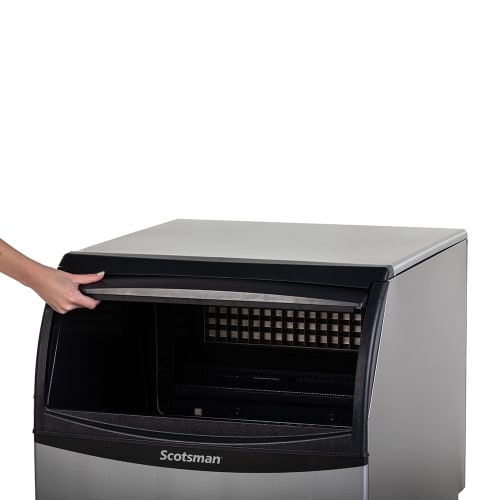

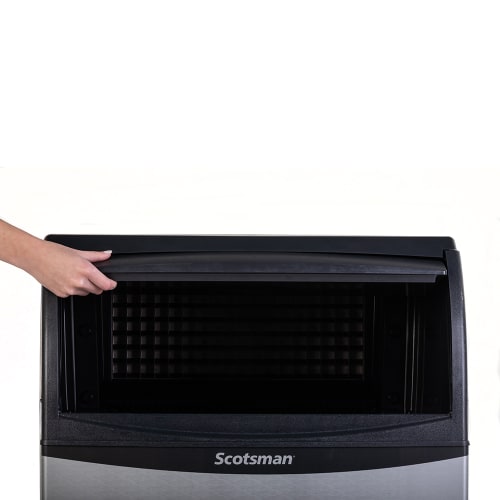

- Ergonomic bin door slides back

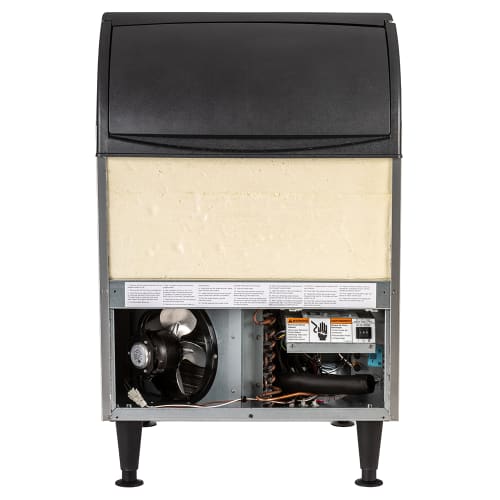

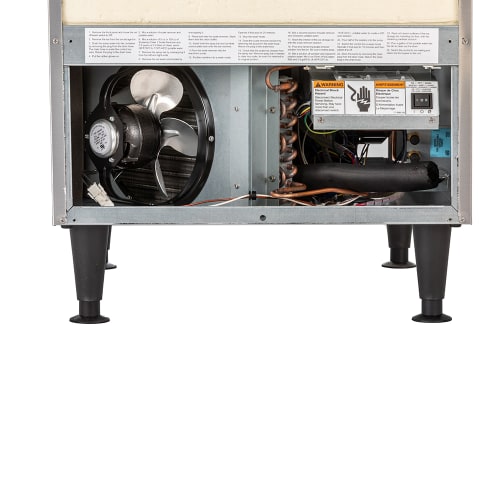

- Self-contained, air-cooled condenser is simple to install and maintain
- Front-breathing design doesn't require side clearances

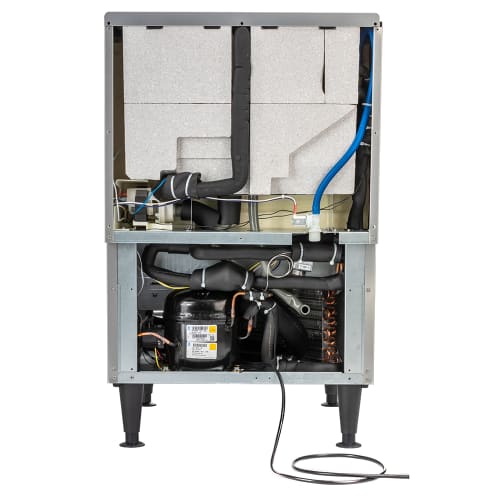

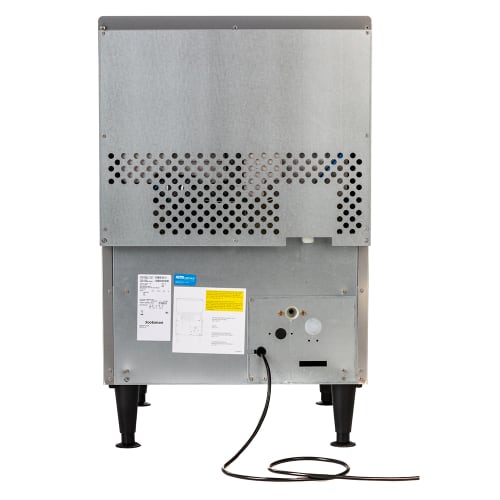

- Utility chase is recessed to reduce clearance requirements
- Cools with R-134A refrigerant

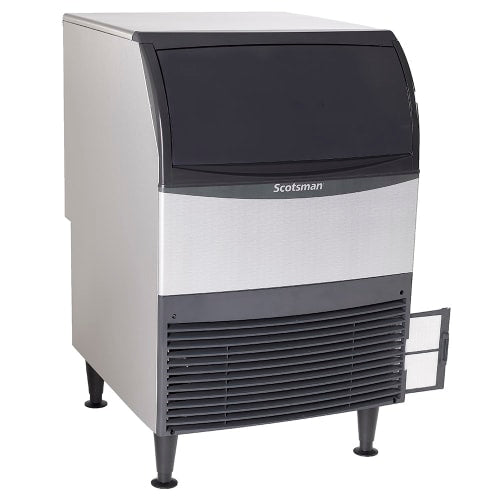

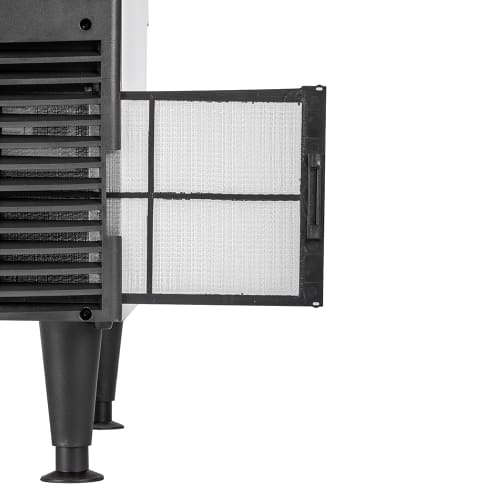

- Air filter is accessible from the front for cleaning
- Side panels have durable, aluminum alloy construction
- Mounted on 6-in. legs
- Comes with an ice scoop
- 3,900-BTU heat transfer capacity
Specifications
| Manufacturer: | Scotsman |
| Width (in): | 24 |
| Depth (in): | 28.5 |
| Height (in): | 39 |
| Weight: | 150.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Hertz: | 60 |
| Warranty: | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor |
| 24 Hr. Production (lb): | 227 |
| Bin Capacity (lb): | 80 |
| Compressor Type: | Air Cooled |
| Design: | Standard Height |
| Drain Type: | Gravity |
| Front Style: | Lift Door |
| Ice Type: | Half Cube |
| NEMA: | 5-15P |
| Product: | Undercounter Ice Machines |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R134a |
| Special Features: | Removable Air Filter |
| Suggested Use: | Home/Office |
| Water Inlet (in): | 0.38 |
Dimensions & Utilities
- 24 in. W x 281/2 in. D x 39 in. H
- 15 A, 6.14 kW
- 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
- *Free shipping on Scotsman UC2024SA-1 within the 48 contiguous states.
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Undercounter Ice Maker With Bin, 24"W, cube style, air cooling, integrated condenser, production capacity up to 227 lb/day at 70°/50° (174 lb AHRI certified at 90°/70°), 80 lb compartment storage capacity, ergonomic slide-back door, recessed utility chase, front accessible external removable air filter, alluminum alloy side panels, small cube size, R-134A refrigerant, features 6" legs, 24"W x 28.5"D x 39"H, 115v/60/1-ph, 15 amps, NSF, cULus, Made in USA, AHRI Certified
