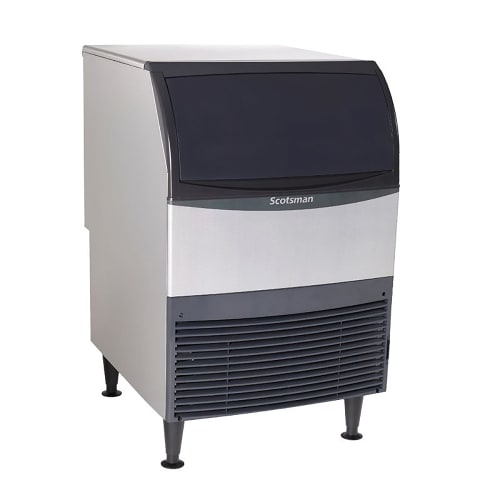

Scotsman UC2024MA-1 24"W Full Cube Undercounter Ice Machine - 227 lbs/day, Air Cooled, Gravity Drain, 115v
The Scotsman UC2024MA-1 undercounter ice maker can produce 227 lbs ice in ideal conditions. Its storage compartment houses 80 lbs. This ice maker creates 7⁄8" full dice ice that melts slowly to enhance drink presentation in bars. This Scotsman UC2024MA-1 ice maker has a integrated condenser for simple installation. Its system breathes from the front, so it eliminates the need for side or rear clearances and can be installed in space-saving areas. To clean the air filter, users can remove it from the front. *Free shipping on Scotsman UC2024MA-1 within the 48 contiguous states. Undercounter Ice Maker With Bin, 24"W, cube style, air-cooled, self-contained condenser, production capacity up to 227 lb/24 hours at 70°/50° (174 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, ergonomic slide-back door, recessed utility chase, front accessible external removable air filter, alluminum alloy side panels, medium cube size, R-134A refrigerant, includes 6" legs, 24"W x 28.5"D x 39"H, 115v/60/1-ph, 15 amps, NSF, cULus, Made in USA, AHRI Certified Watch a video about this product Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries. Important Prop 65 information for California residents.
Product Details
- Produces medium-cube ice

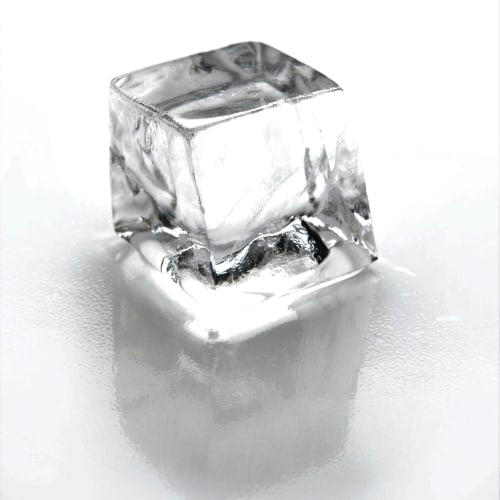

- Ice size: 7⁄8 in. L x 7⁄8 in. W x 7⁄8 in. H

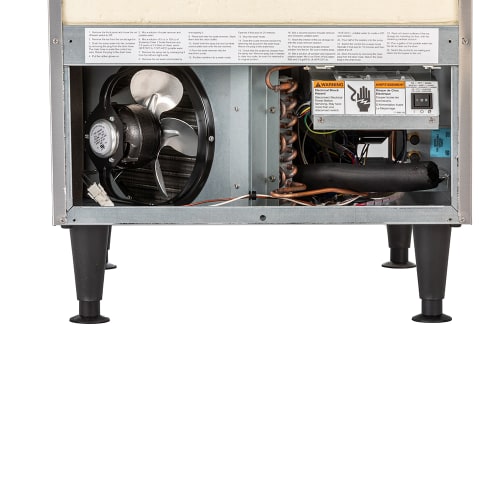

- Self-contained condenser is air cooled and front breathing
- Uses R-134A refrigerant
- 227-lb. maximum daily ice production
- 174-lb. AHRI-certified daily ice production
- Storage bin holds 80 lbs.

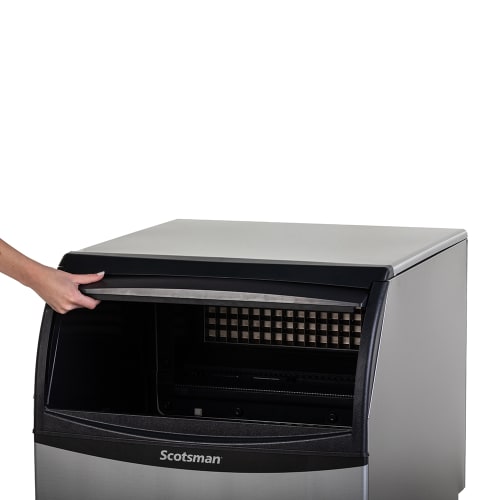

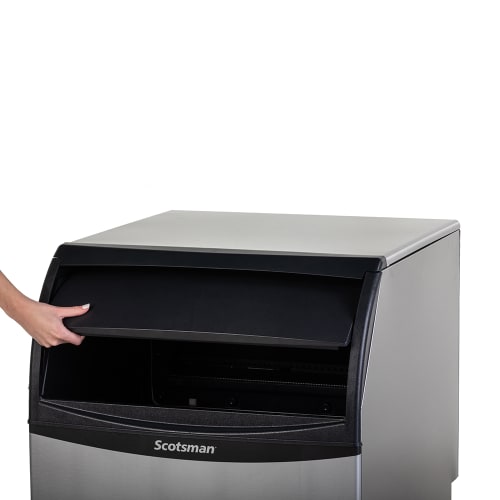

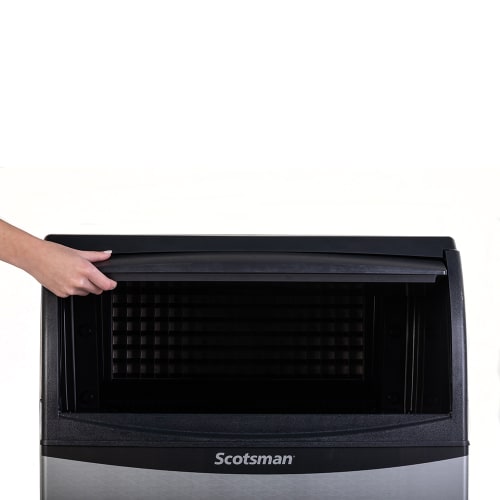

- Ergonomic slide-back door for ice accessibility
- Recessed utility chase facilitates installation in small areas

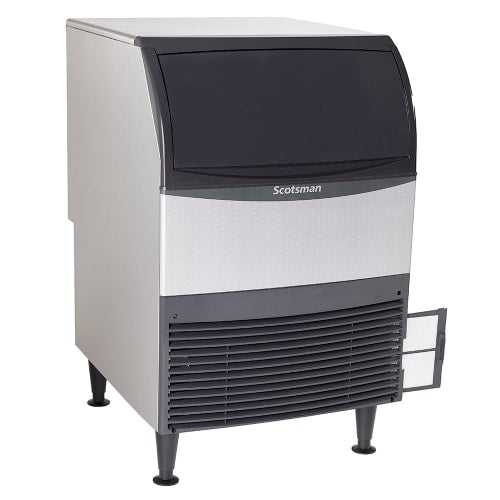

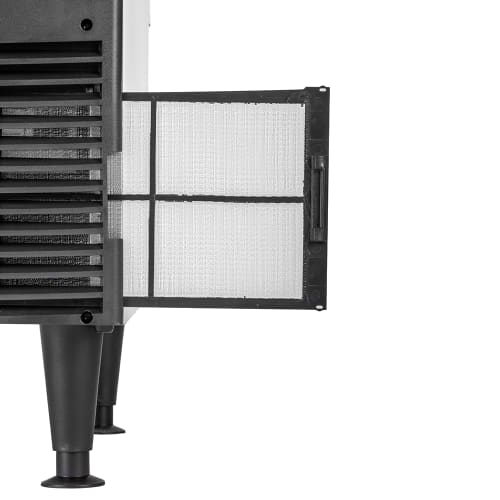

- External air filter is accessible and removable from the front
- Side panels are made of aluminum alloy
- Mounted on 6-in. legs
- Includes an ice scoop
- 3,900-BTU heat transfer capacity
- Ideal ambient temperature range: 50-100 degrees F
Specifications
| Manufacturer: | Scotsman |
| Width (in): | 24 |
| Depth (in): | 28.5 |
| Height (in): | 39 |
| Weight: | 150.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Hertz: | 60 |
| Warranty: | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor |
| 24 Hr. Production (lb): | 227 |
| Bin Capacity (lb): | 80 |
| Compressor Type: | Air Cooled |
| Design: | Standard Height |
| Drain Type: | Gravity |
| Front Style: | Lift Door |
| Ice Type: | Full Cube |
| NEMA: | 5-15P |
| Product: | Undercounter Ice Machines |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R134a |
| Special Features: | Removable Air Filter |
| Suggested Use: | Home/Office |
| Water Inlet (in): | 0.38 |
Dimensions & Utilities
- 24 in. W x 281/2 in. D x 39 in. H
- 15 A, 6.14 kW
- 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
- *Free shipping on Scotsman UC2024MA-1 within the 48 contiguous states.
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Undercounter Ice Maker With Bin, 24"W, cube style, air cooling, integrated condenser, production capacity up to 227 lb/day at 70°/50° (174 lb AHRI certified at 90°/70°), 80 lb compartment storage capacity, ergonomic slide-back door, recessed utility chase, front accessible external removable air filter, alluminum alloy side panels, medium cube size, R-134A refrigerant, features 6" legs, 24"W x 28.5"D x 39"H, 115v/60/1-ph, 15 amps, NSF, cULus, Made in USA, AHRI Certified
