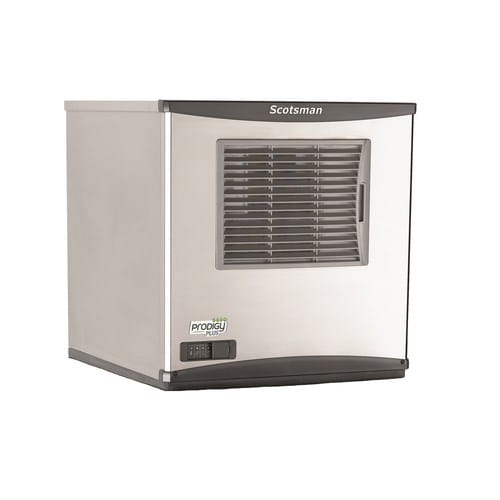

Scotsman NS0622A-1 22" Prodigy Plus® Nugget Ice Machine Head - 643 lb/24 hr, Air Cooled, 115v/1ph
For streamlined installation, the Scotsman NS0622A-1 ice machine head has an air cooling, integrated refrigeration system and cools with R404A refrigerant. Its sealed bearings prevent water damage and require no maintenance, extending the unit's life in a professional setting. Made of stainless steel, the auger and evaporator resist rust and corrosion, and the ice maker has a durable stainless steel finish. Users can scan the unit-specific QR code to view warranty information and guides. The Scotsman NS0622A-1 nugget ice machine head performs interior cleaning with the push of a button. To slow the growth of bacteria and reduce germ spread, this unit is protected by AgION™ antimicrobial. This ice maker generates 643 lbs ice per day in ideal conditions and generates a maximum of 547 lbs daily if water and air temperatures are higher. *Free shipping on Scotsman NS0622A-1 within the 48 contiguous states. Prodigy Plus® Ice Maker, nugget style, Original Chewable Ice®, air-cooled, self-contained condenser, production capacity up to 643 lb/24 hours at 70°/50° (547 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, front facing removable air filter, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 16.0 amps, NSF, cULus, engineered and assembled in USA Watch a video about this product Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries. Important Prop 65 information for California residents.
Product Details
- Part of the Prodigy Plus® series
- 643-lb. maximum daily ice production
- 547-lb. AHRI-certified daily ice production

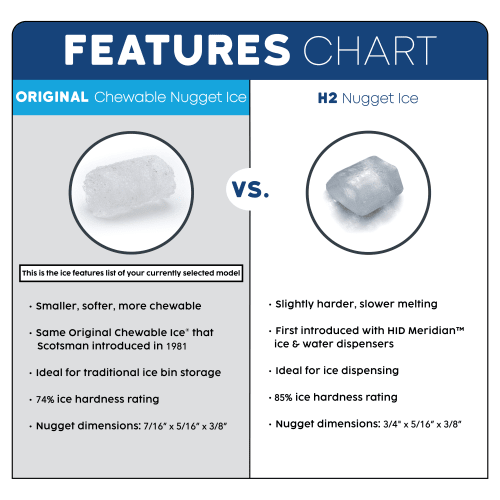

- Produces Original Chewable Ice®
- Ice dimensions: 7⁄16 in. x 5⁄16 in. x 3⁄8 in.
- Air-cooled, self-contained condenser
- Maintenance-free, sealed bearings
- AutoAlert™ indicating lights
- QR code displays warranty information when scanned
- Evaporator and auger made of stainless steel
- Corrosion-resistant stainless steel finish
- Single-touch cleaning
- AgION antimicrobial slows germ growth
- Uses R404A refrigerant
- Ideal incoming air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- 7,100-BTU heat transfer capacity
Specifications
| Manufacturer: | Scotsman |
| Width (in): | 22 |
| Depth (in): | 24 |
| Height (in): | 23 |
| Weight: | 180.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Warranty: | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor |
| 24 Hr. Production (lb): | 643 |
| Compressor Type: | Air Cooled |
| Ice Type: | Nugget |
| Product: | Ice Machine Heads |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R404A |
| Series: | Prodigy Plus® |
| Special Features: | The Original Chewable Ice® |
| Suggested Use: | Commercial |
| Water Inlet (in): | 0.38 |
Dimensions & Utilities
- 229/10 in. W x 24 in. D x 23 in. H
- 16 A
- 115 V/60 Hz/1 ph
- *Free shipping on Scotsman NS0622A-1 within the 48 contiguous states.
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Prodigy Plus® Ice Maker, nugget style, Original Chewable Ice®, air cooling, integrated condenser, production capacity up to 643 lb/day at 70°/50° (547 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, front facing removable air filter, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 16.0 amps, NSF, cULus, engineered and assembled in USA
