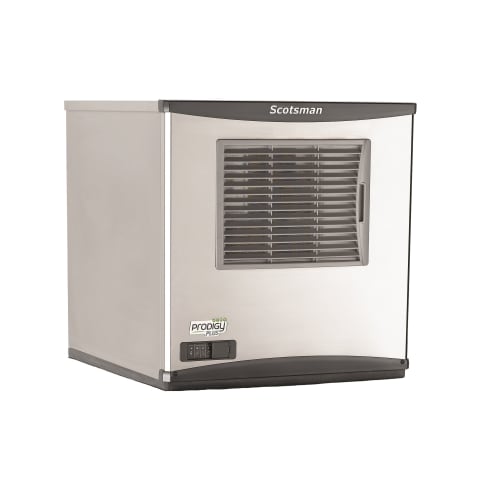

Scotsman NS0422A-1 22" Prodigy Plus® Nugget Ice Machine Head - 420 lb/24 hr, Air Cooled, 115v/1ph
Producing as much as 420 lbs ice per day in optimal conditions, the Scotsman NS0422A-1 Prodigy Plus™ ice machine head supplies soft, chewable nugget ice—excellent for chilling soft drinks and sweet tea. Its stainless steel exterior, auger, and evaporator make this ice machine durable against rust, scratches, and dents for long-term use. For sanitary operation between cleanings, this unit offers antimicrobial treatment that prevents bacteria, mold, and mildew growth. Its front-ventilation design and removable, front-accessible air filter mean this unit needs no side clearance. The Scotsman NS0422A-1 Prodigy Plus nugget ice machine head features integrated indicator lights and a unit-specific QR code for streamlined troubleshooting, simplifying maintenance. Requiring minimal user labor, this unit has one-touch cleaning operation, and its bearings are sealed to ensure smooth movement for a lifetime of use. Because the refrigeration system is integrated, no separate condenser or additional coolant lines are needed to operate this ice maker. *Free shipping on Scotsman NS0422A-1 within the 48 contiguous states. Prodigy Plus® Ice Maker, nugget style, Original Chewable Ice®, air-cooled, self-contained condenser, production capacity up to 420 lb/24 hours at 70°/50° (348 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, front facing removable air filter, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 12.9 amps, NSF, cULus, engineered and assembled in USA Watch a video about this product Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries. Important Prop 65 information for California residents.
Product Details
- Air cooled

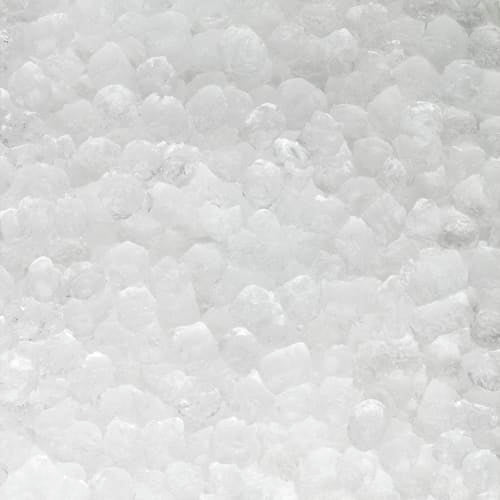

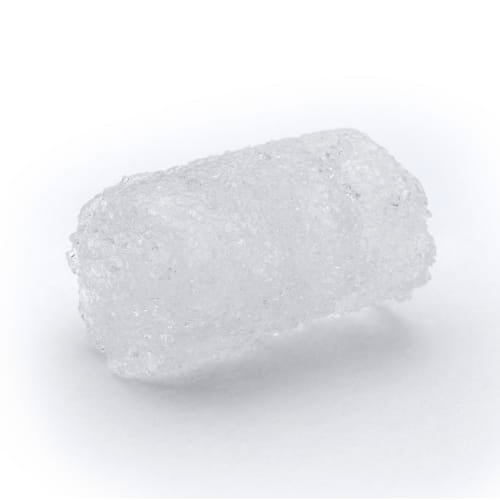

- Produces nugget ice
- Original Chewable Ice® is good for chilling soft drinks
- 420-lb. maximum daily ice production
- 348-lb. AHRI-certified daily ice production
- Condenser is self-contained for simple operation
- Front breathing for zero side clearance
- Bearings are sealed to maintain smooth use
- Built with AutoAlert™ indicator lights
- Resists microbial contamination with AgION™ enhancement
- Unit-specific QR code for improved maintenance
- Removable air filter accessible from the front
- Stainless steel auger and evaporator for extended operation
- Labor is reduced with simple, 1-touch cleaning
- Stainless steel finish
- Uses R404A refrigerant
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSI
- Heat displacement: 5,000 BTU
Specifications
| Manufacturer: | Scotsman |
| Width (in): | 22 |
| Depth (in): | 24 |
| Height (in): | 27 |
| Weight: | 172.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Warranty: | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor |
| 24 Hr. Production (lb): | 420 |
| Compressor Type: | Air Cooled |
| Ice Type: | Nugget |
| Product: | Ice Machine Heads |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R404A |
| Series: | Prodigy Plus® |
| Special Features: | The Original Chewable Ice® |
| Suggested Use: | Commercial |
| Water Inlet (in): | 0.38 |
Dimensions & Utilities
- 22 in. W x 24 in. D x 23 in. H
- 12.9 A
- 115 V/60 Hz/1ph
- *Free shipping on Scotsman NS0422A-1 within the 48 contiguous states.
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Prodigy Plus® Ice Maker, nugget style, Original Chewable Ice®, air cooling, integrated condenser, production capacity up to 420 lb/day at 70°/50° (348 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, front facing removable air filter, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 12.9 amps, NSF, cULus, engineered and assembled in USA
