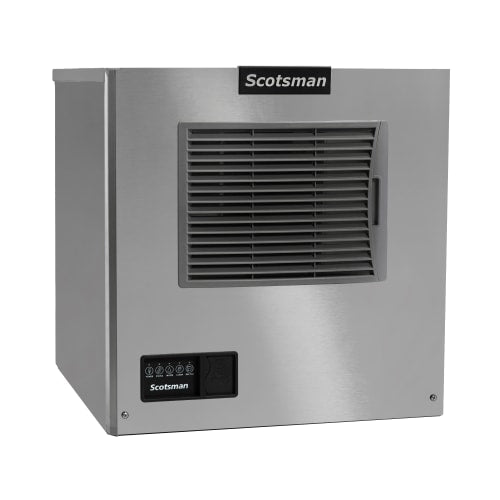

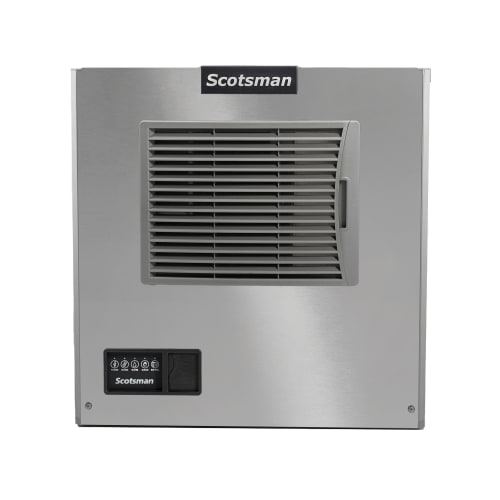

Scotsman MC0522SA-1 22" Prodigy ELITE® Half Cube Ice Machine Head - 475 lb/24 hr, Air Cooled, 115v/1ph
Cooling with R-404A refrigerant, the Scotsman MC0522SA-1 Prodigy ELITE® ice maker can produce 475 lbs ice per day in ideal ambient conditions. Its integrated condenser simplifies installation, and its self-aligning front panel delivers access to key components for maintenance. As this ice maker can be paired with Scotsman’s ICELINQ® mobile app, operators can conveniently access the machine dashboard, update settings as needed, and walk through step-by-step cleaning. Users are alerted of operational status updates with AutoAlert™ indicating lights, and overall, this unit spans 22" wide by 24" deep by 23" high. Inhibiting the growth of mold, mildew, and bacteria, the Scotsman MC0522SA-1 ice machine head is treated with AgION™ antimicrobial protection. Scaly buildup is removed with WaterSense adjustable purge control, and because the unit offers a stainless steel finish, it prevents rust. This unit’s harvest assist feature guides ice through the head and into a compatible dispenser or compartment that is purchased separately. Note: This unit must be paired with an ice maker compartment or ice dispenser. *Free shipping on Scotsman MC0522SA-1 within the 48 contiguous states. Prodigy ELITE® Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 475 lb/24 hours at 70°/50° (340 lb AHRI certified at 90°/70°), small cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, front facing removable air filter, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 115v/60/1-ph, 13.5 amps, cULus, NSF, engineered and assembled in USA Watch a video about this product Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries. Important Prop 65 information for California residents.
Product Details
- Part of the Prodigy ELITE series
- 475-lb. maximum daily ice production
- 340-lb. AHR-certified daily ice production
- Produces small cube ice
- Individual ice cube dimensions: 7⁄8 in. x 7⁄8 in. 3⁄8 in.
- Durable stainless steel finish
- Compatible with bluetooth

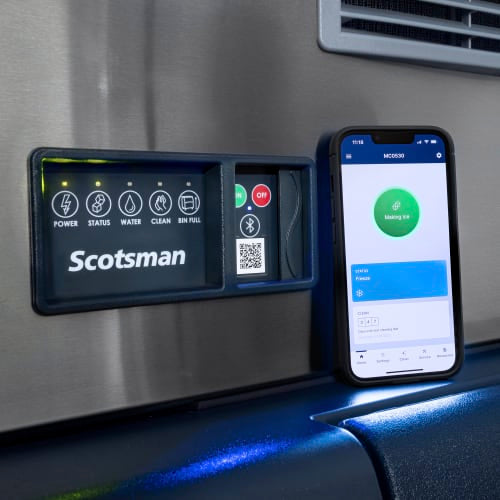

- ICELINQ mobile app compatible
- Mobile app enables settings adjustments, diagnostics reports, and guided cleaning

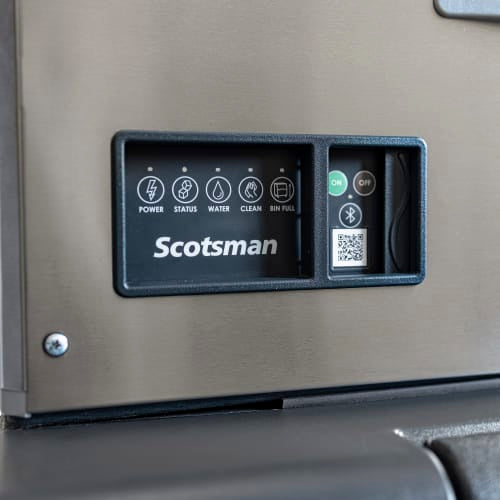

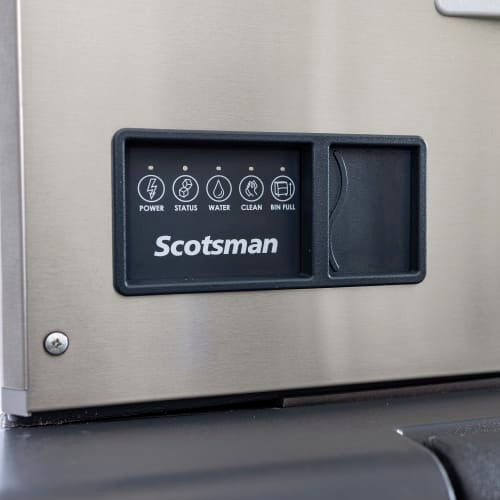

- AutoAlert indicating lights keep users aware of unit’s status

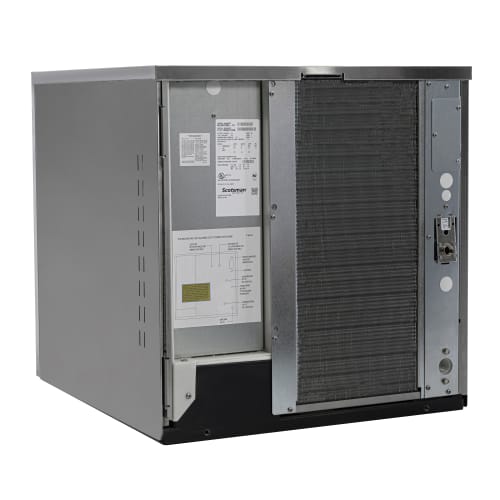

- Self-contained condenser simplifies installation
- Air cooled
- 1-touch cleaning

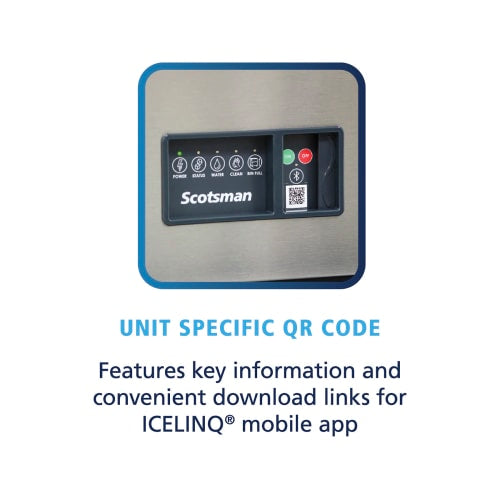

- Unit-specific QR code

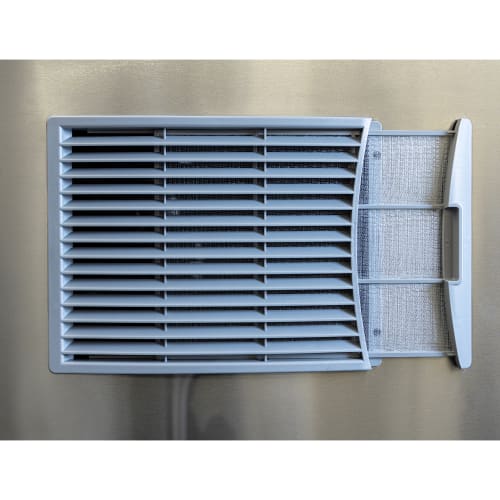

- Front-located air filter
- Self-aligning front panel for component access
- WaterSense adjustable purge control eliminates scale accumulation
- AgION antimicrobial protection
- Harvest assist helps guide ice through unit
- R-404A refrigerant
- Operating ambient temperature range: 50-100 degrees F
- Operating water temperature range: 40-000 degrees F
- Operating incoming water pressure: 20-80 PSIG
- 7,900-BTU transfer capacity
Specifications
| Manufacturer: | Scotsman |
| Width (in): | 22 |
| Depth (in): | 24 |
| Height (in): | 23 |
| Weight: | 160.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Warranty: | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| 24 Hr. Production (lb): | 475 |
| Compressor Type: | Air Cooled |
| Ice Type: | Half Cube |
| Product: | Ice Machine Heads |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R404A |
| Series: | Prodigy ELITE® |
| Special Features: | AgION™ Antimicrobial Protection |
| Suggested Use: | Commercial |
| Water Inlet (in): | 0.38 |
Dimensions & Utilities
- 22 in. W x 24 in. D x 23 in. H
- 13.5 A, 5.94 kW
- 115 V/60 Hz/1 ph
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Prodigy ELITE® Ice Maker, cube style, air cooling, integrated condenser, production capacity up to 475 lb/day at 70°/50° (340 lb AHRI certified at 90°/70°), small cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external compartment full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, front facing removable air filter, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 115v/60/1-ph, 13.5 amps, cULus, NSF, engineered and assembled in USA
