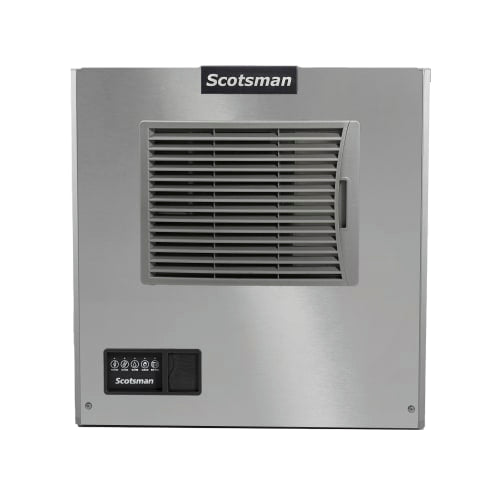

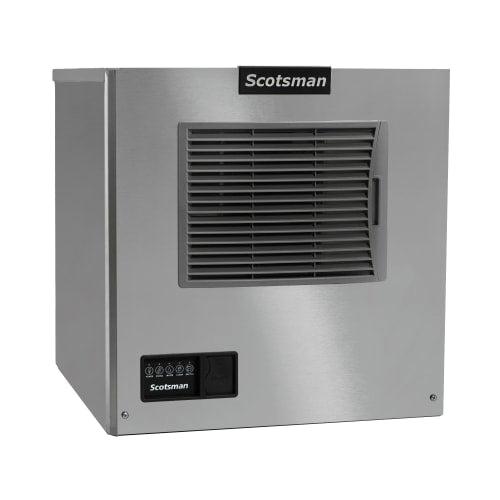

Scotsman MC0522MA-1 22" Prodigy ELITE® Full Cube Ice Machine Head - 475 lb/24 hr, Air Cooled, 115v/1ph
Producing medium cubes of ice, the Scotsman MC0522MA-1 Prodigy ELITE® ice maker has a maximum production rate of 475 lbs in ideal environmental conditions. To defend against microbial growth, it’s treated with AgION™ protection, while its WaterSense adjustable purge controls removes scale buildup to keep the unit running smoothly. Simplifying installation and maintenance, this unit offers a integrated condenser, and its self-aligning front panel delivers access to key components. An air cooling unit, the Scotsman MC0522MA-1 ice machine head operates with R-404A refrigerant. Operational updates are provided with AutoAlert™ indicating lights, and ice is guided through the unit using a Harvest Assist feature. Operators can use the Scotsman ICELINQ® mobile app to connect to the ice maker’s dashboard and settings and walk through a step-by-step intuitive cleaning process. For durability and corrosion resistance, it offers a stainless steel finish, and overall, this unit spans 22" wide by 24" deep by 23" high. Note: This unit must be paired with an ice maker compartment or ice dispenser. *Free shipping on Scotsman MC0522MA-1 within the 48 contiguous states. Prodigy ELITE® Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 475 lb/24 hours at 70°/50° (340 lb AHRI certified at 90°/70°), medium cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, front facing removable air filter, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 115v/60/1-ph, 13.5 amps, cULus, NSF, engineered and assembled in USA Watch a video about this product Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries. Important Prop 65 information for California residents.
Product Details
- Part of the Prodigy ELITE series
- 475-lb. maximum daily ice production
- 340-lb. AHR-certified daily ice production
- Produces medium cube ice
- Individual ice cube dimensions: 7⁄8 in. x 7⁄8 in. 7⁄8 in.

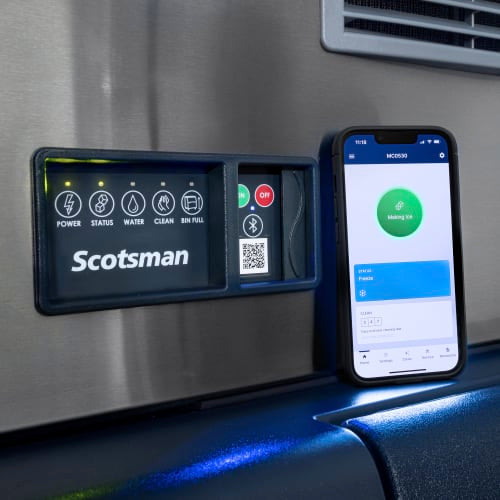

- Connects to mobile app via bluetooth
- Compatible with ICELINQ mobile application
- App provides diagnostics report and enables settings adjustments and guided cleaning instructions
- Corrosion-resistant stainless steel finish

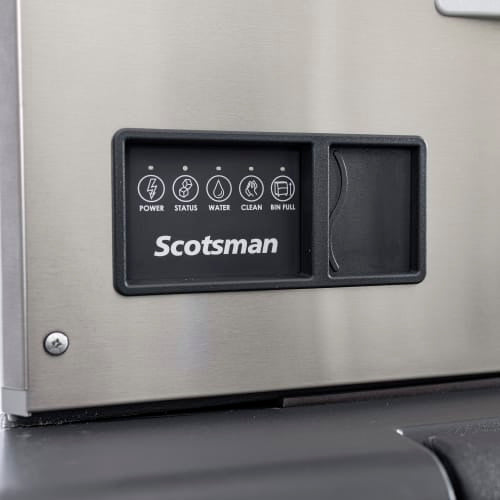

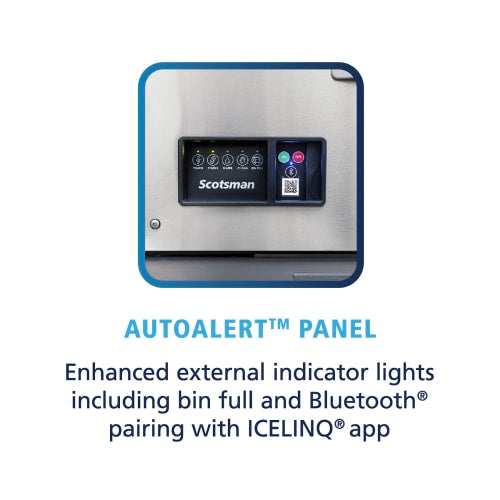

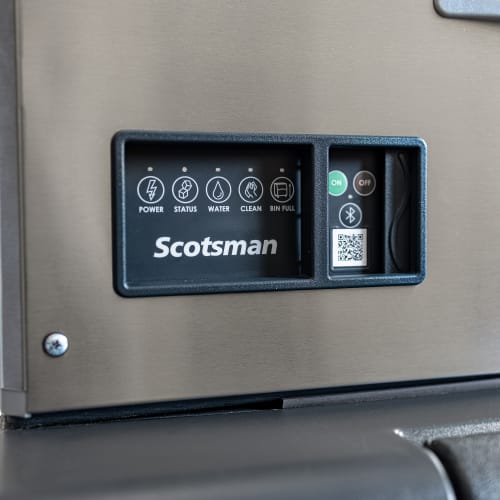

- AutoAlert indicating lights update users of operational status

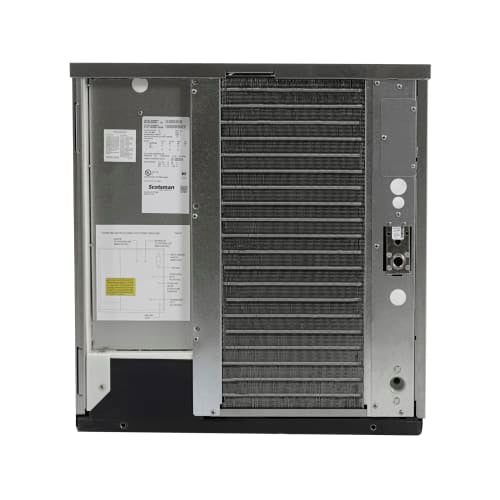

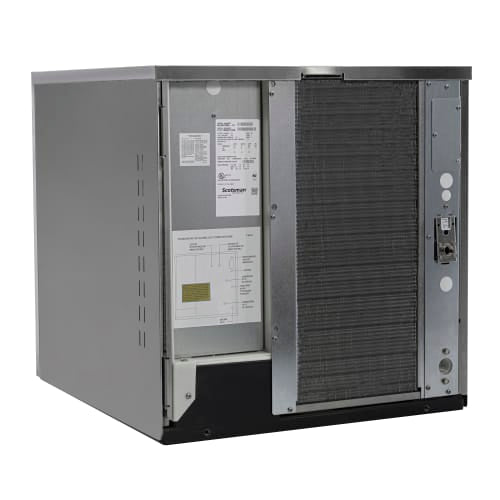

- Self-contained condenser
- Air cooled
- 1-touch cleaning

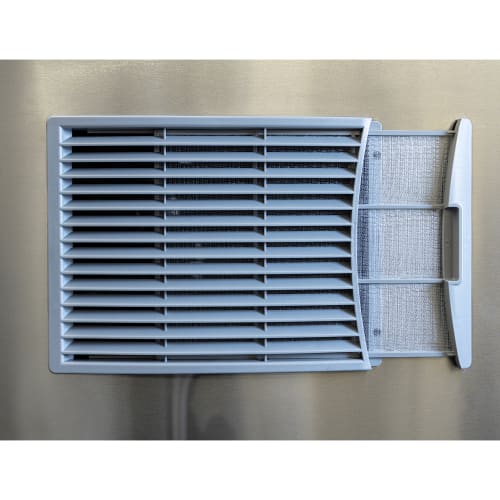

- Front air filter
- Self-aligning front panel ensures component access
- WaterSense adjustable purge control removes scale buildup
- AgION protection inhibits microbial growth
- Harvest assist helps guide ice through unit
- Unit-specific QR code
- Cools with R-404A refrigerant
- Operating ambient temperature range: 50-100 degrees F
- Operating water temperature range: 40-000 degrees F
- Operating incoming water pressure: 20-80 PSIG
- 7,900-BTU transfer capacity
Specifications
| Manufacturer: | Scotsman |
| Width (in): | 22 |
| Depth (in): | 24 |
| Height (in): | 23 |
| Weight: | 160.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Warranty: | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| 24 Hr. Production (lb): | 475 |
| Compressor Type: | Air Cooled |
| Ice Type: | Full Cube |
| Product: | Ice Machine Heads |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R404A |
| Series: | Prodigy ELITE® |
| Special Features: | AgION™ Antimicrobial Protection |
| Suggested Use: | Commercial |
| Water Inlet (in): | 0.38 |
Dimensions & Utilities
- 22 in. W x 24 in. D x 23 in. H
- 13.5 A, 5.94 kW
- 115 V/60 Hz/1 ph
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Prodigy ELITE® Ice Maker, cube style, air cooling, integrated condenser, production capacity up to 475 lb/day at 70°/50° (340 lb AHRI certified at 90°/70°), medium cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external compartment full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, front facing removable air filter, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 115v/60/1-ph, 13.5 amps, cULus, NSF, engineered and assembled in USA
