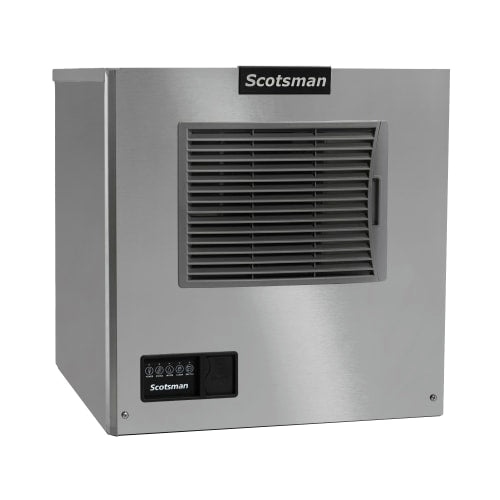

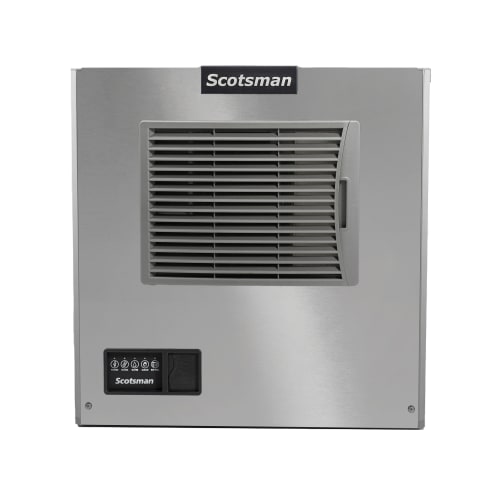

Scotsman MC0322SA-1 22" Prodigy ELITE® Half Cube Ice Machine Head - 356 lb/24 hr, Air Cooled, 115v/1ph
When ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit, the Scotsman MC0322SA-1 Prodigy ELITE® air cooling ice machine head can produce 356 lbs of half dice ice over day. This type of ice spans 7⁄8 of an inch by 7⁄8 of an inch by 3⁄8 of an inch and is often served with soft drinks or blended into smoothies and frozen cocktails. To uphold efficiency during production, it offers a front-located air filter, while its Harvest Assist mechanism directs cube ice into the compartment, which is sold separately. Users can quickly determine operational status with the AutoAlert™ indicator lights. Designed to ease operation, routine cleaning, and servicing, Scotsman has a mobile app available for operator download. With the ICELINQ® app, operators have access to the machine dashboard, unit controls, and a step-by-step cleaning guide. To minimize hands-on cleaning requirements, the Scotsman MC0322SA-1 ice maker head offers a one-touch cleaning mechanism and patented WaterSense purge control that automatically reduces scale buildup. Antimicrobial protection inhibits bacterial growth on internal surfaces between regular cleanings, and to access the unit's key interior components, staff can remove the self-aligning front panel. To conserve space in space-saving settings, it spans 22" wide by 24" deep by 23" tall and is designed for use with the Scotsman B322S ice compartment (not included). Its stainless steel finish simplifies external cleaning while providing long-term rust, dent, and scratch resistance to extend its service life. *Free shipping on Scotsman MC0322SA-1 within the 48 contiguous states. Prodigy ELITE® Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 356 lb/24 hours at 70°/50° (232 lb AHRI certified at 90°/70°), small cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, front facing removable air filter, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 115v/60/1-ph, 12.7 amps, cULus, NSF, engineered and assembled in USA Watch a video about this product Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries. Important Prop 65 information for California residents.
Product Details
- Prodigy ELITE collection
- Self-contained air-cooled condenser
- Maximum 24-hour production: 356 lbs.
- AHRI-certified 24-hour production: 232 lbs.
- Half-cube dimensions: 7⁄8 in. x 7⁄8 in. x 3⁄8 in.
- Can be connected to app using bluetooth for control adjustments and guided cleaning

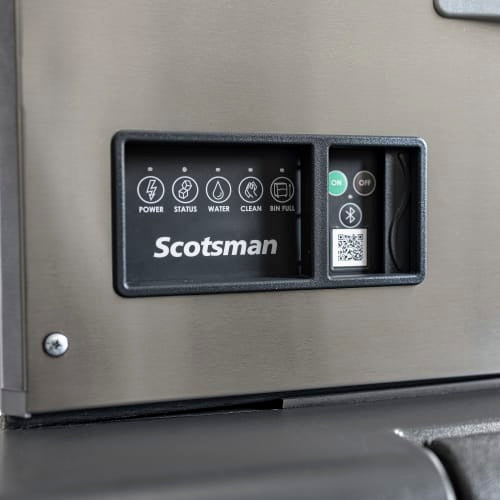

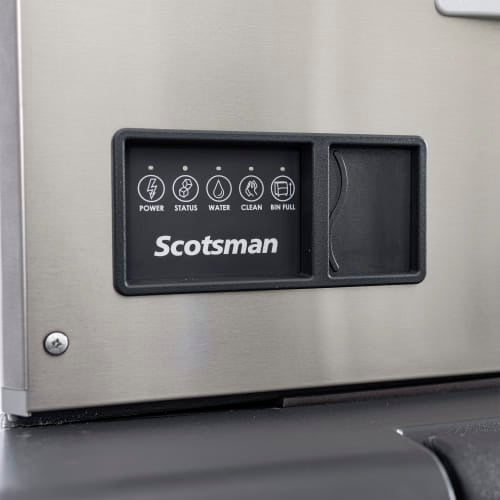

- AutoAlert indicator lights alert users to operational issues
- Compatible with ICELINQ mobile application
- 1-touch cleaning mechanism

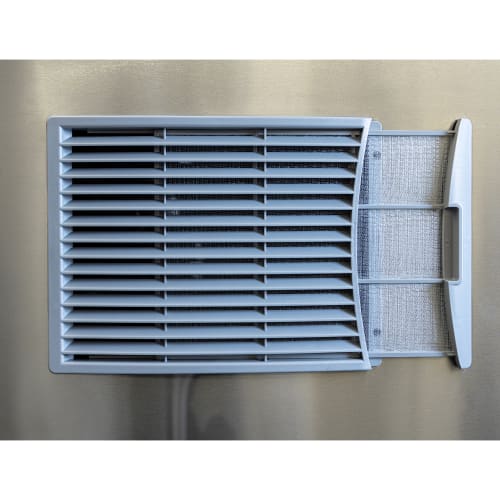

- Front-located air filter enhances efficiency
- Self-aligning front panel provides access to key internal components
- WaterSense purge control reduces scale accumulation
- Harvest Assist directs ice into storage bin
- Internal surfaces treated with antimicrobial protection agent
- Can be used with the Scotsman B322S ice bin (sold separately)
- R-404A refrigerant
- Required ambient temperature range: 50-100 degrees F
- Required incoming water temperature range: 40-100 degrees F
- Required incoming water pressure range: 20-80 PSI
- 5,200 BTU
Specifications
| Manufacturer: | Scotsman |
| Width (in): | 22 |
| Depth (in): | 24 |
| Height (in): | 23 |
| Weight: | 155.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Warranty: | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| 24 Hr. Production (lb): | 356 |
| Compressor Type: | Air Cooled |
| Ice Type: | Half Cube |
| Product: | Ice Machine Heads |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R404A |
| Series: | Prodigy ELITE® |
| Special Features: | AgION™ Antimicrobial Protection |
| Suggested Use: | Commercial |
| Water Inlet (in): | 0.38 |
Dimensions & Utilities
- 22 in. W x 24 in. D x 23 in. H
- 12.7 A, 6.95 kW
- 115 V/60 Hz/1 ph
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Prodigy ELITE® Ice Maker, cube style, air cooling, integrated condenser, production capacity up to 356 lb/day at 70°/50° (232 lb AHRI certified at 90°/70°), small cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external compartment full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, front facing removable air filter, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 115v/60/1-ph, 12.7 amps, cULus, NSF, engineered and assembled in USA
