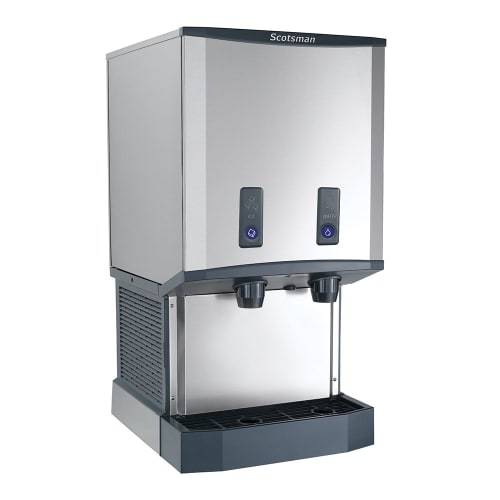

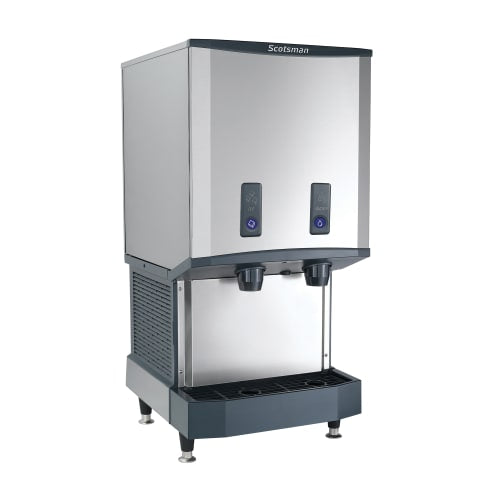

Scotsman HID540ABX-1 500 lb Countertop Water & Nugget Ice Dispenser - 40 lb Storage, Cup Fill, Push-Button Dispense, 115v
Ideal for medium-volume establishments, the Scotsman HID540ABX-1 countertop ice dispenser generates as much as 500 lbs ice per day in optimal environmental conditions. It crafts H2 nugget ice—an absorbent type perfect for cooling soft drinks and lemonade. To keep fresh ice on hand, it's equipped with a 40-pound storage compartment. This unit spans 211/4" wide by 2419/50" deep by 41" high with an 11" dispensing area that accommodates most drinkware; its space-saving footprint enables countertop placement. To reduce maintenance needs, it's built with sealed bearings. Sturdy and corrosion resistant, the Scotsman HID540ABX-1 ice and water dispenser's auger, evaporator, and exterior panels are made of stainless steel. This metal also offers excellent resistance to dents and scratches and is easy to clean. To enhance sanitation, the key components and control buttons are protected by an antimicrobial agent that inhibits mold, bacteria, and algae growth. This unit is air cooled and operates with R290 refrigerant. The unit has push buttons for convenient dispensing of ice or water. Its SmoothStream™ water dispensing minimizes splashing to maintain a pristine working area, while its 8/10" enlarged sink drain removes excess water. *Free shipping on Scotsman HID540ABX-1 within the 48 contiguous states. Meridian™ Ice & Water Dispenser, push-button dispensing, H2 Nugget Ice, air-cooled, production capacity up to 500 lb/24 hours at 70°/50° (365 lb AHRI certified at 90°/70°), 40 lb bin storage capacity, sealed maintenance-free bearings, removable bin, removable air filter, SmoothStream™ water dispensing, removable spouts and sink, enlarged 0.8" sink drain, recessed utility chase, stainless steel evaporator and auger, enlarged 11" dispensing area, USB software upgrade port, unit specific QR code, stainless steel exterior, AgION™ antimicrobial protection, R290 refrigerant, includes 7.5’ power cord with NEMA 5-15P plug, 115V/60/1, 9.0 amps, cULus, NSF Watch a video about this product Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries. Important Prop 65 information for California residents.
Product Details
- Part of the Meridian™ line
- 500-lb. maximum daily ice production
- 365-lb. AHRI-certified daily ice production
- For countertop placement
- 40-lb. storage bin

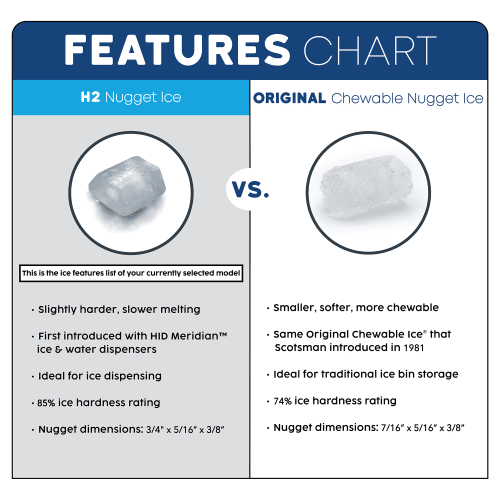

- Produces absorbent H2 nugget ice
- Nugget ice dimensions: 3⁄4 in. x 5⁄16 in. x 3⁄8 in.
- SmoothStream water dispensing
- Refrigeration system is sealed to minimize risk of contamination
- 11-in. dispensing area
- Recessed utility chase
- Key components protected with AgION™ antimicrobial treatment
- Grill, spouts, air filter, bin, and sink can be removed to streamline cleaning
- Unit-specific QR code provides service history and maintenance updates
- Sealed, maintenance-free bearings
- Large, 8/10-in. dia. sink drain
- LED diagnostic lights and USB drive
- Air-cooled refrigeration system
- Evaporator, auger, and exterior panels made of durable stainless steel
- R290 refrigerant
- 6,800-BTU heat transfer capacity
- Operating ambient air temperature: 50-100 degrees F
- Operating incoming water temperature: 40-100 degrees F
- Operating incoming water pressure: 20-80 PSI
Specifications
| Manufacturer: | Scotsman |
| Width (in): | 21.25 |
| Depth (in): | 24.38 |
| Height (in): | 41 |
| Weight: | 215.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Hertz: | 60 |
| Warranty: | Commercial: 3-year Parts & Labor; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| 24 Hr. Production (lb): | 500 |
| Also Known As: | HID540AB-1 |
| Amps: | 9 |
| Bin Capacity (lb): | 40 |
| Compressor Type: | Air Cooled |
| Dispenser Type: | Push Button |
| Dispenses: | Ice & Water |
| Ice Type: | Nugget |
| Installation Type: | Countertop |
| NEMA: | 5-15P |
| Operation: | Self Contained |
| Product: | Ice Dispensers |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R290 (Hydrocarbon) |
| Series: | Meridian™ |
| Serving Vessel: | Cup |
| Special Features: | Sealed, Maintenance-Free Bearings |
| Suggested Use: | Home/Office |
| Water Inlet (in): | 0.38 |
Dimensions & Utilities
- 211/4 in. W x 2419/50 in. D x 41 in. H
- 15 A, 5.5 kW
- 115 V/60 Hz/1 ph, 71⁄2-ft. cord with NEMA 5-15P plug
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Meridian™ Ice & Water Dispenser, push-button dispensing, H2 Nugget Ice, air cooling, production capacity up to 500 lb/day at 70°/50° (365 lb AHRI certified at 90°/70°), 40 lb compartment storage capacity, sealed maintenance-free bearings, detachable compartment, removable air filter, SmoothStream™ water dispensing, removable spouts and sink, enlarged 0.8" sink drain, recessed utility chase, stainless steel evaporator and auger, enlarged 11" dispensing area, USB software upgrade port, unit specific QR code, stainless steel exterior, AgION™ antimicrobial protection, R290 refrigerant, features 7.5’ power cord with NEMA 5-15P plug, 115V/60/1, 9.0 amps, cULus, NSF
Ideal for medium-volume establishments, the Scotsman HID540ABX-1 countertop ice dispenser generates as much as 500 lbs ice per day in optimal environmental conditions. It crafts H2 nugget ice—an absorbent type perfect for cooling soft drinks and lemonade. To keep fresh ice on hand, it's equipped with a 40-pound storage compartment. This unit spans 211/4" wide by 2419/50" deep by 41" high with an 11" dispensing area that accommodates most drinkware; its space-saving footprint enables countertop placement. To reduce maintenance needs, it's built with sealed bearings.
