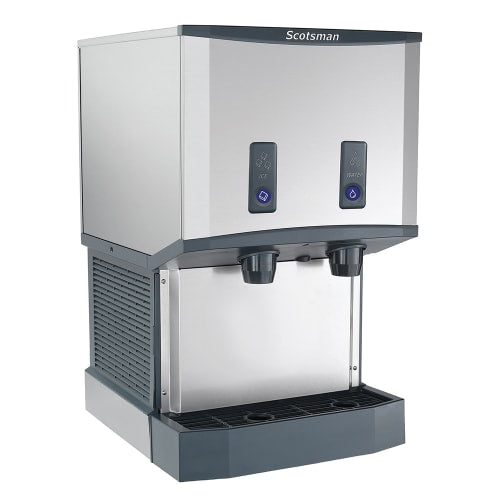

Scotsman HID525ABX-1 500 lb Countertop Water & Nugget Ice Dispenser - 25 lb Storage, Cup Fill, Push-Button Dispense, 115v
To inhibit bacteria, mold, and other germ growth, the Scotsman HID525ABX-1 ice dispenser's buttons and key components are treated with AgION⢠antimicrobial protection. It features maintenance-free, sealed bearings to reduce labor, and its sealed refrigeration system minimizes contamination risks. To facilitate thorough cleaning, its air filter, sink, compartment, spouts, and grill are removable. This unit's auger, evaporator, and exterior panels are made of stainless steel to provide long-lasting strength and corrosion resistance. At a maximum rate of 500 lbs per day in ideal conditions, the Scotsman HID525ABX-1 ice and water dispenser generates H2 nugget ice. This type is chewable and absorbent, so it's ideal for serving in soft drinks and iced tea. A unit-specific QR code gives users model information and maintenance requirements. This unit is air cooled and operates with R290 refrigerant. Overall, it spans 211/4" wide by 243/8" deep by 35" high. *Free shipping on Scotsman HID525ABX-1 within the 48 contiguous states. Meridian⢠Ice & Water Dispenser, push-button dispensing, H2 Nugget Ice, air-cooled, production capacity up to 500 lb/24 hours at 70°/50° (365 lb AHRI certified at 90°/70°), 25 lb bin storage capacity, sealed maintenance-free bearings, removable bin, removable air filter, SmoothStream⢠water dispensing, removable spouts and sink, enlarged 0.8" sink drain, recessed utility chase, stainless steel evaporator and auger, enlarged 11" dispensing area, USB software upgrade port, unit specific QR code, stainless steel exterior, AgION⢠antimicrobial protection, R290 refrigerant, includes 7.5â power cord with NEMA 5-15P plug, 115V/60/1, 9.0 amps, cULus, NSF Watch a video about this product Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries. Important Prop 65 information for California residents.
Product Details
- Part of the Meridian⢠series
- Countertop model
- 500-lb. maximum daily ice production
- 365-lb. AHRI-certified daily ice production
- Air cooled
- 25-lb. storage bin

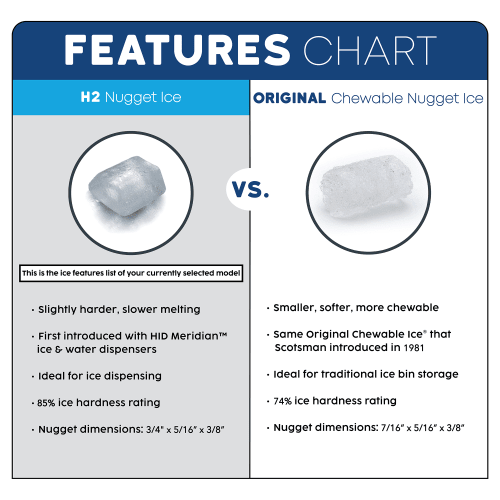

- Produces chewable H2 nugget ice
- Ice nugget dimensions: 3â4 in. x 5â16 in. x 3â8 in.
- SmoothStream⢠water dispensing
- Large, 11-in. dispensing area
- Push-button dispensing of ice and water
- Buttons and key components protected by AgION antimicrobial agent
- Air filter, bin, sink, spouts, and grill are removable for thorough cleaning
- Sealed refrigeration system reduces risk of contamination
- Evaporator, auger, and exterior panels made of rugged stainless steel
- Recessed utility chase
- Uses R290 refrigerant
- Unit-specific QR code
- Sealed, maintenance-free bearings
- Enlarged sink drain measures 0.8 in.
- LED diagnostic lights and USB drive streamline service and updates
- 6,800-BTU heat transfer capacity
- Operating ambient air temperature: 50-100 degrees F
- Operating incoming water temperature: 40-100 degrees F
- Operating incoming water pressure: 20-80 PSI
Specifications
| Manufacturer: | Scotsman |
| Width (in): | 21.25 |
| Depth (in): | 24.38 |
| Height (in): | 35 |
| Weight: | 208.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Hertz: | 60 |
| Warranty: | Commercial: 3-year Parts & Labor; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| 24 Hr. Production (lb): | 500 |
| Also Known As: | HID525AB-1 |
| Amps: | 9 |
| Bin Capacity (lb): | 25 |
| Compressor Type: | Air Cooled |
| Dispenser Type: | Push Button |
| Dispenses: | Ice & Water |
| Ice Type: | Nugget |
| Installation Type: | Countertop |
| NEMA: | 5-15P |
| Operation: | Self Contained |
| Product: | Ice Dispensers |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R290 (Hydrocarbon) |
| Series: | Meridian⢠|
| Serving Vessel: | Cup |
| Special Features: | Sealed, Maintenance-Free Bearings |
| Suggested Use: | Home/Office |
| Water Inlet (in): | 0.38 |
Dimensions & Utilities
- 211/4 in. W x 243/8 in. D x 35 in. H
- 9 A
- 115 V/60 Hz/1 ph, 7.5-ft. cord with NEMA 5-15P plug
- *Free shipping on Scotsman HID525ABX-1 within the 48 contiguous states.
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Meridian⢠Ice & Water Dispenser, push-button dispensing, H2 Nugget Ice, air cooling, production capacity up to 500 lb/day at 70°/50° (365 lb AHRI certified at 90°/70°), 25 lb compartment storage capacity, sealed maintenance-free bearings, detachable compartment, removable air filter, SmoothStream⢠water dispensing, removable spouts and sink, enlarged 0.8" sink drain, recessed utility chase, stainless steel evaporator and auger, enlarged 11" dispensing area, USB software upgrade port, unit specific QR code, stainless steel exterior, AgION⢠antimicrobial protection, R290 refrigerant, features 7.5â power cord with NEMA 5-15P plug, 115V/60/1, 9.0 amps, cULus, NSF
