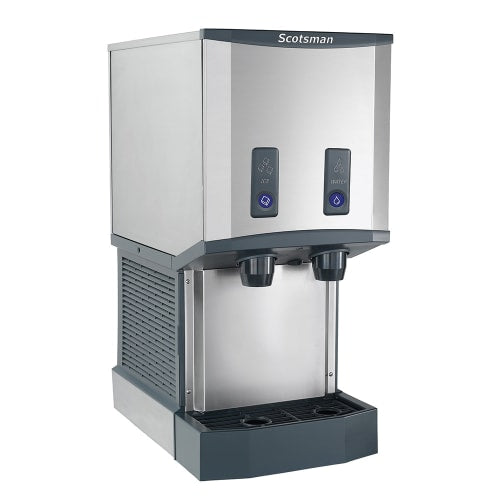

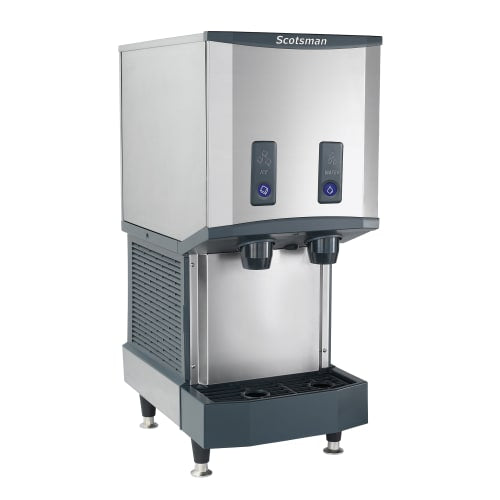

Scotsman HID312ABX-1 260 lb Countertop Water & Nugget Ice Dispenser - 12 lb Storage, Cup Fill, Push-Button Dispense, 115v
Product Details
- Part of the Meridian® series
- For countertop placement
- 260-lb. maximum daily ice production
- 225-lb. AHRI-certified daily ice production
- 12-lb.-capacity storage compartment

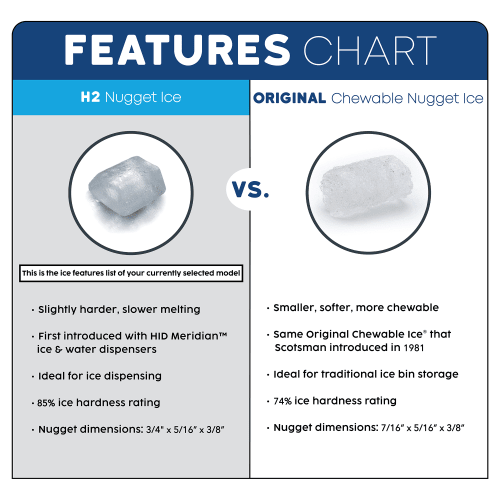

- Produces chewable H2 nugget ice
- Ice dimensions: 3⁄4 in. x 5⁄16 in. x 3⁄8 in.
- SmoothStream water dispensing minimizes splashing
- 11-in. dispensing area
- Enlarged, 8/10-in. sink drain
- Recessed utility chase
- Sealed, maintenance-free bearings

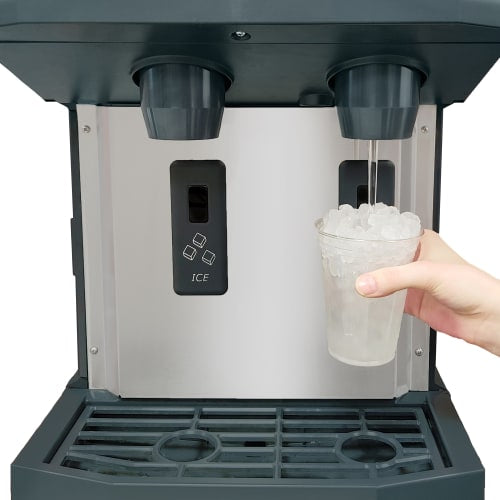

- Push-button water and ice dispensing
- Buttons and key components treated with AgION antimicrobial agent
- Bin, air filter, sink, spouts, and grill are removable for thorough cleaning
- air-circulation cooling system is sealed to reduce contamination risks
- Auger, evaporator, and exterior panels are made of durable stainless steel
- Cools with R290 refrigerant
- Unit-specific QR code
- LED diagnostic lights and USB drive streamline service and updates
- 3,200-BTU heat transfer capacity
- Operating ambient air temperature: 50-100 degrees F
- Operating incoming water temperature: 40-100 degrees F
- Operating incoming water pressure: 20-80 PSI
Product Features
*Free shipping on Scotsman HID312ABX-1 within the 48 contiguous states.
Dimensions & Utilities
- Overall: 161/4 in. W x 2419/50 in. D x 35 in. H
- 15 A, 4.9 kW
- 115 V/60 Hz/1 ph, 71⁄2-ft. cord with NEMA 5-15P plug
From The Manufacturer
Meridian™ Ice & Water Dispenser, push-button dispensing, H2 Nugget Ice, air cooling, production capacity up to 260 lb/24 hours at 70°/50° (225 lb AHRI certified at 90°/70°), 12 lb bin storage capacity, sealed maintenance-free bearings, removable bin, removable air filter, SmoothStream™ water dispensing, removable spouts and sink, enlarged 0.8" sink drain, recessed utility chase, stainless steel evaporator and auger, enlarged 11" dispensing area, USB software upgrade port, unit specific QR code, stainless steel exterior, AgION™ antimicrobial protection, R290 refrigerant, features 7.5’ power cord with NEMA 5-15P plug, 115V/60/1-ph, 7.0 amps, cULus, NSF
*Image may not depict product color, inclusions or accessories.
Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 260 |
| Also Known As | HID312AB-1 |
| Amps | 7 |
| Bin Capacity (lb) | 12 |
| Compressor Type | Air Cooled |
| Depth (in) | 24.38 |
| Dispenser Type | Push Button |
| Dispenses | Ice & Water |
| Height (in) | 35 |
| Hertz | 60 |
| Ice Type | Nugget |
| Installation Type | Countertop |
| NEMA | 5-15P |
| Operation | Self Contained |
| Phase | 1 |
| Product | Ice Dispensers |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Meridian™ |
| Serving Vessel | Cup |
| Special Features | H2 Harder Nugget Ice |
| Special Features | Sealed, Maintenance-Free Bearings |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 16.25 |
| Weight | 183.00 |
