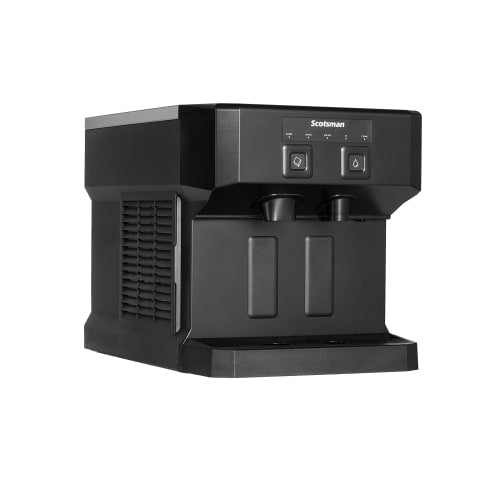

Scotsman HID207ABX-1 196 lb Countertop Water & Nugget Ice Dispenser - 7 lb Storage, Cup Fill, Push-Button Dispense, 115v

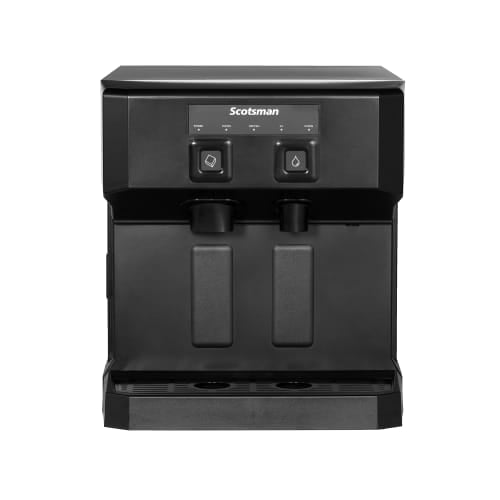

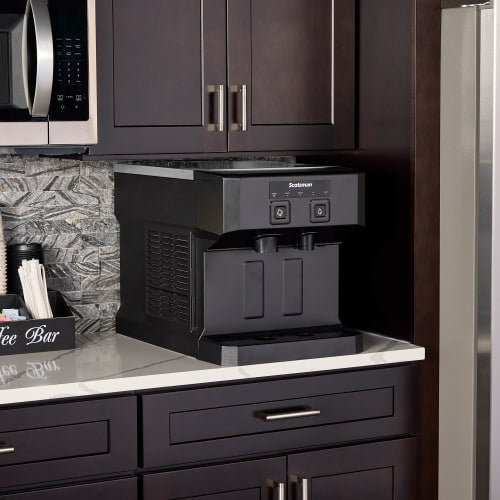

The modern and space-saving Scotsman HID207ABX-1 nugget and water dispenser has a 16" width ideal for countertops, enabling users to easily access the dispensing area. Compatible with most cup or mug sizes, this dispensing area spans 81/2". This unit is built-in with SmoothStream™ water dispensing to minimize splashing. The ice dispensing component can produce 194 lbs of nugget ice in a single day. AgION® antimicrobial protection is integrated into most of the components to inhibit the growth of bacteria and maintain ice quality. This dispenser uses R290 hydrocarbon refrigerant to cool incoming water for ice production. For ideal operating conditions, this unit requires ambient temperatures to be between 50 and 100 degrees Fahrenheit, water temperatures between 40 and 100 degrees Fahrenheit, and an atmospheric pressure range between 20 and 80 PSIG. The AutoAlert™ indicator lights display the status of the unit. The produced ice of the Scotsman HID207ABX-1 Meridian™ dispenser can be stored in the integrated 7-pound storage compartment. Made for long-term use, this unit is built with sealed, maintenance-free bearings. Integral components like the evaporator and auger are made of high-strength stainless steel. For cleaning purposes, the compartment, air filter, spouts, sink, and drain cover are detchable. *Free shipping on Scotsman HID207ABX-1 within the 48 contiguous states. Meridian™ Compact Ice & Water Dispenser, antimicrobial push-button dispensing, nugget style, Original Chewable Ice®, air-cooled, production capacity up to 196 lb/24 hours at 70°/50° (160 lb AHRI certified at 90°/70°), 7 lb bin storage capacity, sealed maintenance-free bearing, UV-LED internal sanitation module, AutoAlert™ external indicating lights, removable bin, removable air filter, SmoothStream™ water dispensing, illuminated dispensing, removable spouts and sink, integrated sink drain cover, consolidated 0.75" drain outlet, recessed utility chase, stainless steel evaporator and auger, ADA compliant dispensing area, 8.15" dispensing area, unit specific QR code, included snap-on panels for ice only configuration, AgION® antimicrobial protection, R-290 refrigerant, includes 6’ power cord with NEMA 5-15P plug, 115V/60/1-ph, 5.8 amps, cULus, NSF, AHRI, engineered and assembled in USA Watch a video about this product Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries. Important Prop 65 information for California residents.
Product Details
- From the Meridian™ series
- As much as 194-lb. production in 24 hours
- 7-lb. storage
- Push-button dispensing
- AutoAlert indicator lights
- Sealed, maintenance-free bearings

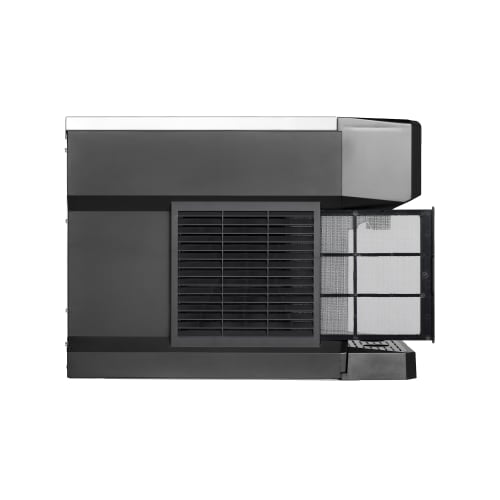

- Removable bin and air filter
- Removable spouts and sink
- Built-in sink drain cover (removable)
Specifications
| Manufacturer: | Scotsman |
| Width (in): | 16.05 |
| Depth (in): | 23.89 |
| Height (in): | 17.54 |
| Weight: | 80.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Hertz: | 60 |
| Warranty: | Commercial: 3-year Parts & Labor; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| 24 Hr. Production (lb): | 196 |
| Amps: | 5.8 |
| Bin Capacity (lb): | 7 |
| Compressor Type: | Air Cooled |
| Dispenser Type: | Push Button |
| Dispenses: | Ice & Water |
| Ice Type: | Nugget |
| Installation Type: | Countertop |
| NEMA: | 5-15P |
| Operation: | Self Contained |
| Product: | Ice Dispensers |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R290 (Hydrocarbon) |
| Series: | Meridian™ |
| Serving Vessel: | Cup |
| Special Features: | The Original Chewable Ice® |
| Suggested Use: | Home/Office |
| Water Inlet (in): | 0.25 |
Dimensions & Utilities
- Dispensing area: 81/2 in.
- Drain outlet: 3/4 in.
- Overall: 16 in. W x 232/5 in. D x 171/2 in. H
- 5.8 A
- 115 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Meridian™ Compact Ice & Water Dispenser, antimicrobial push-button dispensing, nugget style, Original Chewable Ice®, air cooling, production capacity up to 196 lb/day at 70°/50° (160 lb AHRI certified at 90°/70°), 7 lb compartment storage capacity, sealed maintenance-free bearing, UV-LED internal sanitation module, AutoAlert™ external indicating lights, detachable compartment, removable air filter, SmoothStream™ water dispensing, illuminated dispensing, removable spouts and sink, integrated sink drain cover, consolidated 0.75" drain outlet, recessed utility chase, stainless steel evaporator and auger, ADA compliant dispensing area, 8.15" dispensing area, unit specific QR code, included snap-on panels for ice only configuration, AgION® antimicrobial protection, R-290 refrigerant, features 6’ power cord with NEMA 5-15P plug, 115V/60/1-ph, 5.8 amps, cULus, NSF, AHRI, engineered and assembled in USA
