Summit BIM26H32 15"W Crescent Cube Undercounter Ice Machine - 25 lbs/day, Air Cooled, No Drain Needed, 115v

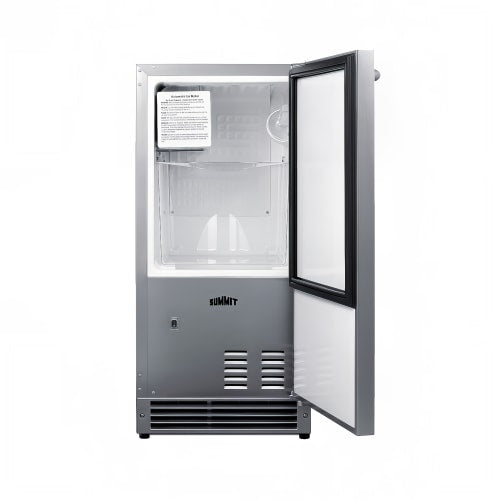

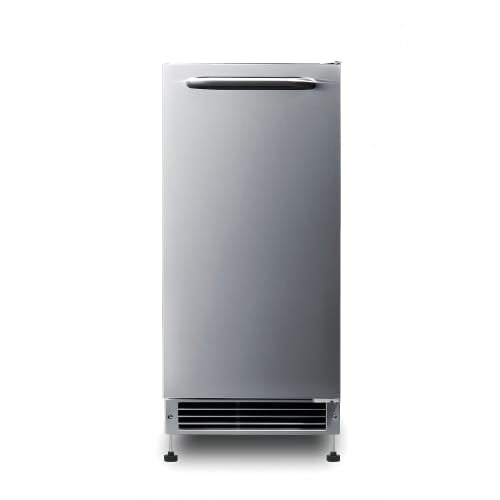

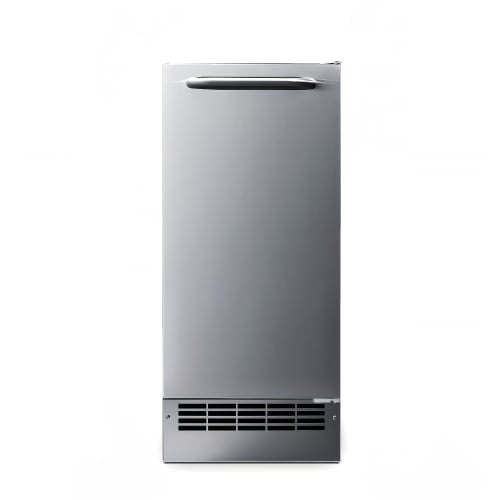

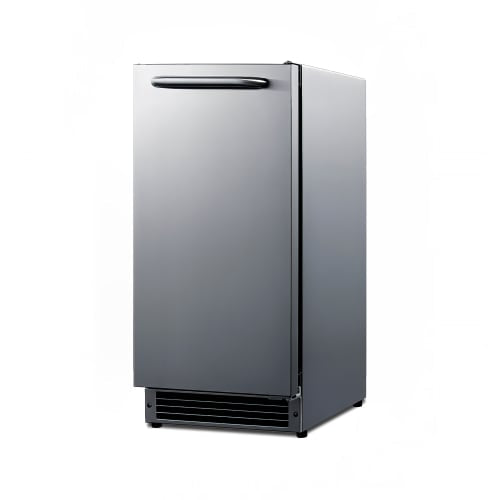

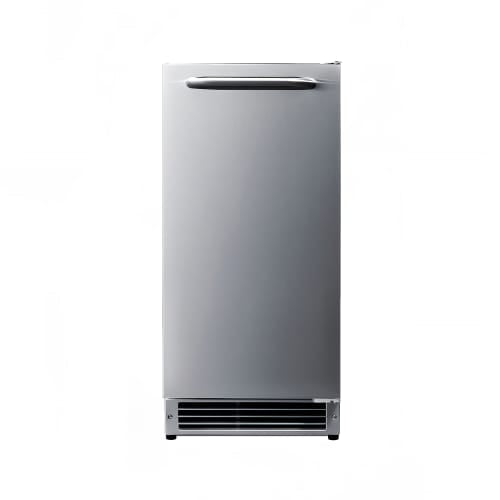

The Summit BIM26H32 undercounter ice machine is designed for space-saving spaces, producing as much as 25 lbs of 1" crescent ice cubes per day and storing 22 lbs in its insulated compartment. Its 304 stainless steel exterior finish resists rust and corrosion, while the reversible solid swing door delivers flexible installation. To ensure stability on uneven surfaces, its kickplates and levelers can extend up to 21/4". Equipped with a drain-free static cooling system, the Summit BIM26H32 undercounter ice maker operates with manual defrost to maintain efficiency. It uses an air cooling refrigerant system with R600a to regulate internal temperatures. A standard 1/4" OD water supply line is required for operation, and an ice scoop is included for user convenience. For installation, the unit runs on 115 volts and offers a three-pronged plug. Icemaker, 15"W, crescent cube style, drain-free design, , makes up to 25 lbs/24 hrs., adjustable height (can be raised to 34", with a taller kickplate included for a seamless aesthetic), stainless steel exterior finish, fully finished cacompartmentet, built-in or freestanding use, operates with a standard 1/4” OD water supply line, manual defrost, ice scoop included, insulated storage compartment, reversible right hand door swing, sealed back, lead-free certified, R600a hydrocarbon refrigerant, CARB compliant, 100% CFC free, 115v/60/1-ph, 1.9 amps, ADA compliant, ETL, ETL-C (Residential) A division of Felix Stroch, Inc., Summit Appliance delivers the largest collection of undercounter and ADA-compliant refrigeration products in the industry. It also delivers a diverse selection of appliances for healthcare settings, hotels, and universities, as well as its own residential brand. Summit has been creating and developing products in its New York headquarters since 1969. Important Prop 65 information for California residents.
Product Details
- Undercounter installation
- Produces 25 lbs. of ice daily
- Stores 22 lbs. of ice
- Makes 1-in. crescent ice cubes
- 304 stainless steel exterior finish
- Reversible solid swing door
- Drain-free operation
- Kickplates and levelers extend to 21/4 in.
- Standard 1/4-in. OD water supply line required
- Ice scoop included
Specifications
| Manufacturer: | Summit |
| Width (in): | 14.88 |
| Depth (in): | 19.38 |
| Height (in): | 31.75 |
| Weight: | 90.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Hertz: | 60 |
| Warranty: | 1-year Limited Parts & Labor; 5-year Compressor |
| 24 Hr. Production (lb): | 25 |
| Bin Capacity (lb): | 22 |
| Compressor Type: | Air Cooled |
| Design: | ADA Height |
| Drain Type: | None |
| Front Style: | Stainless Door |
| Ice Type: | Crescent Cube |
| Product: | Undercounter Ice Machines |
| Product Type: | Ice Makers & Bins |
| Rating: | Good |
| Refrigerant: | R600a (Hydrocarbon) |
| Special Features: | Removable & Insulated Bin |
| Suggested Use: | Home/Office |
Dimensions & Utilities
- Overall: 147/8 in. W x 193/8 in. D x 313/4 in. H
- Interior: 117/8 in. W x 123/8 in. D x 157/8 in. H
- 1.9 A
- 115 V/60 Hz/1 ph, includes cord with 3-pronged plug
Downloads
From The Manufacturer
Icemaker, 15"W, crescent cube style, drain-free design, , makes up to 25 lbs/24 hrs., adjustable height (can be raised to 34", with a taller kickplate included for a seamless aesthetic), stainless steel exterior finish, fully finished cacompartmentet, built-in or freestanding use, operates with a standard 1/4” OD water supply line, manual defrost, ice scoop included, insulated storage compartment, reversible right hand door swing, sealed back, lead-free certified, R600a hydrocarbon refrigerant, CARB compliant, 100% CFC free, 115v/60/1-ph, 1.9 amps, ADA compliant, ETL, ETL-C (Residential)
