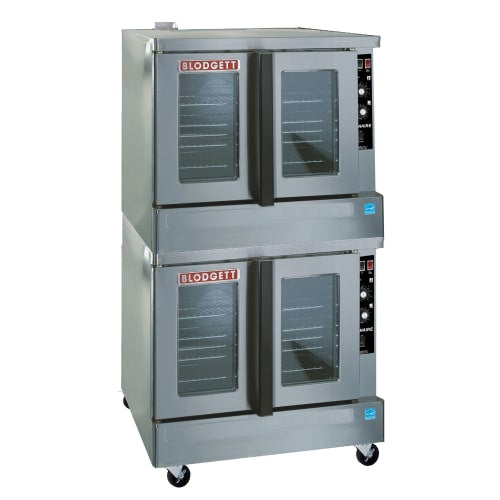

Blodgett ZEPH-100-G-ES DBL Zephaire Double Full Size Natural Gas Convection Oven - 90,000 BTU

Product Details

• 2 standard-depth decks
• Stainless steel top, sides, and front with full angle-iron frame
• 2-in. interior insulation
• 5 removable, chrome-plated racks in each section
• Each compartment accommodates (5) 18-in. x 26-in. pans
• 11 rack positions
• Direct-fired gas system
• Electronic spark-ignition control system
• Removable inshot burners
• Internal pressure regulator
• Manual gas service cut-off switch on control panel's front
• 2-speed fan motor
• ³⁄₄-HP blower motor
• Automatic thermal overload protection
• Solid-state infinite controls with 60-min. manual timer
• Operating temperature range: 200-500 degrees F
• Control area cooling fan
• Interior oven lights
• 4 dependent doors
• Powder-coated door handles
• Dual-pane thermal glass windows
• Triple-mounted, pressure-lock doors with turnbuckle assemblies
• Double-sided porcelain baking compartment liners
• Aluminized steel combustion chambers
• Single-inlet blower wheels
• 6¹/₂-in. adjustable stainless steel legs
• Flue connector included
• 90,000 BTU

Product Features

*Free shipping on Blodgett ZEPH-100-G-ES DBL within the 48 contiguous states.

Dimensions & Utilities

• Interiors: (2) 29 in. W x 24¹/₄ in. D x 20 in. H
• Overall: 38¹/₄ in. W x 36⁷/₈ in. D x 83¹⁹/₂₅ in. H
• 8 A, ³⁄₄ HP
• 115 V/60 Hz/1 ph, features 6-ft. electric cord set
• Powered by natural gas
• ³⁄₄-in. NPT gas supply per section

From The Manufacturer

Zephaire Convection Oven, gas, double-deck, standard depth, capacity (5) 18" x 26" pans per compartment, (SSI-M) solid state infinite controls with 60 min. manual timer, two speed fan, porcelainized baking compartment, dependent glass doors, interior light, flue connector, stainless steel front, sides & top, 6" stainless steel legs, 45,000 BTU each, cETLus, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
