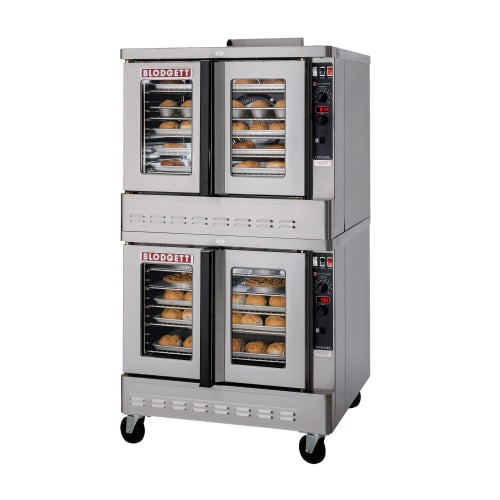

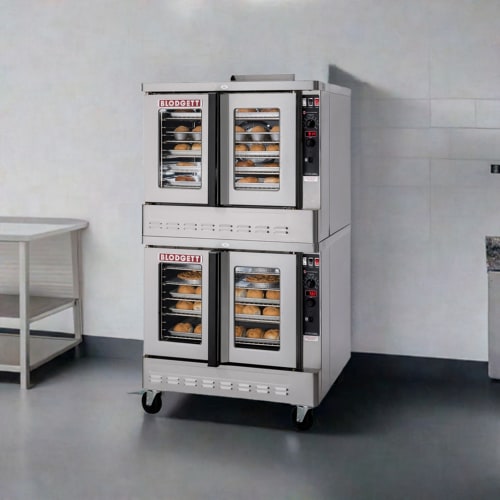

Blodgett ZEPH-100-G DBL Zephaire Double Full Size Natural Gas Convection Oven - 100,000 BTU

Product Details

• 2 standard-depth decks
• Stainless steel top, sides, and front
• Full angle-iron frame
• Insulated top, back, sides, and bottom
• 5 removable, chrome-plated racks per compartment with capacity of (5) 18-in. x 26-in. pans
• 11 rack positions spaced 1.63 in. apart
• Electronic spark-ignition control system
• Removable, dual-tube burners
• Dual-flow gas system
• Pressure regulator and manual gas service cut-off valve (built into front control area)
• Air mixers with adjustable air shutters
• 2-speed fan motor
• ¹⁄₂-HP motor
• Automatic thermal overload protection
• Solid-state infinite controls with 6-min. manual timer
• Operating temperature range: 200-500 degrees F
• Control area cooling fan
• Interior oven lights
• 4 dependent doors with powder-coated door handles and thermal glass windows
• Triple-mounted, pressure-lock doors with turnbuckle assemblies
• Double-sided porcelain baking compartment liners
• Aluminized steel combustion chambers
• Dual-inlet blower wheels
• 6.50-in. adjustable stainless steel legs
• Flue connector included
• 100,000 BTU

Product Features

*Free shipping on Blodgett ZEPH-100-G DBL within the 48 contiguous states.

Dimensions & Utilities

• Interiors: (2) 29 in. W x 24¹/₄ in. D x 20 in. H
• Overall: 38¹/₄ in. W x 36⁷/₈ in. D x 83³/₈ in. H
• 6 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 6-ft. electric cord set included
• Powered by natural gas
• ³⁄₄-in. NPT gas supply per section

From The Manufacturer

Zephaire Convection Oven, gas, double-deck, standard depth, capacity (5) 18" x 26" pans per compartment, (SSI-M) solid state infinite controls with 60 min. manual timer, two speed fan, flue connector, dependent glass doors, interior light, stainless steel front, sides & top, 6" stainless steel legs, 100,000 BTU, ETL, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
