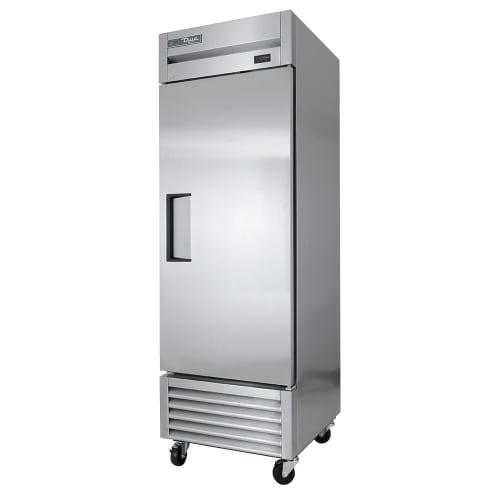

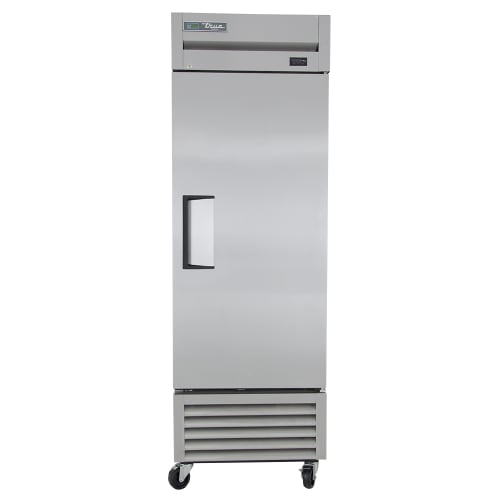

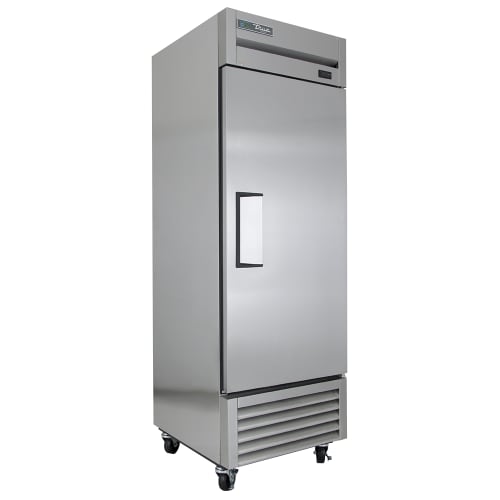

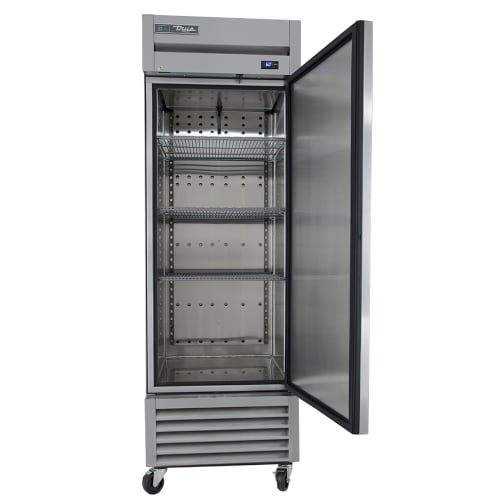

True TS-23F-HC 27" T Series One Section Reach In Freezer, (1) Right Hinge Solid Door, 115v

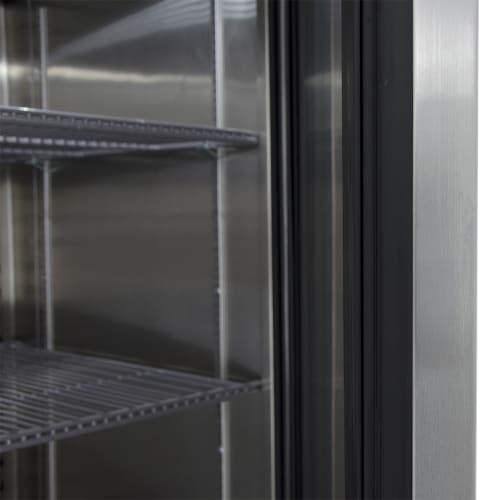

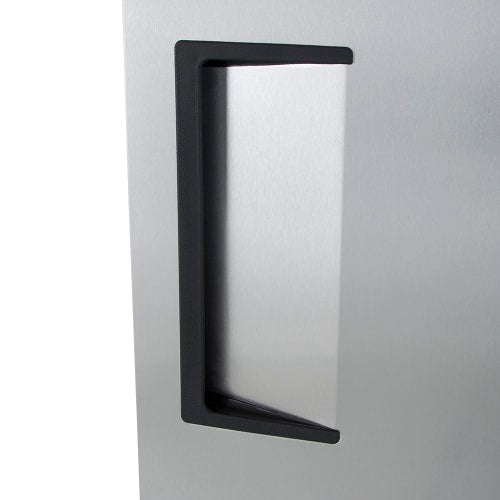

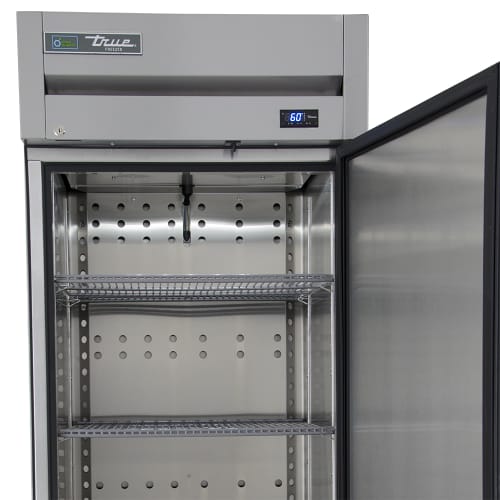

This True TS-23F-HC reach-in freezer is ideal for small venues or businesses with limited available space, and its solid stainless steel door has a durable door hinge with a permanently attached handle. Because the handle is recessed, it lowers the risk of denting nearby equipment. To resist corrosion, the exterior is constructed of stainless steel with a GalFan-coated steel back, while the interior is made of stainless steel, which is scratch and rust resistant. Stability is provided by the steel frame rail, and structure is created by the foamed-in-place polyurethane insulation. Three PVC-coated shelves can be adjusted in 1⁄2" increments to accommodate different sizes of products. Because the refrigeration system is bottom mounted, users can store rarely used supplies on top of the unit. This low placement also lifts the interior floor, so stooping is not needed to reach products. Frozen foods are kept at -10 degrees Fahrenheit by the R290 hydrocarbon refrigerant and a capillary tube system. A consistent airflow is created with the reliable evaporator and condenser fans, and to prevent products from blocking the airflow, guards are in the back of the cacompartmentet. The automatic defroster maintains the True TS-23F-HC reach-in freezer runs properly and reduces the need for excessive maintenance. When the condenser fan motor in this unit starts up, it reverses for 20 seconds to blow debris, dust, and dirt off the condensing coil. Because this coil is integral to system operation, it should be cleaned regularly for reliable and efficient functioning. This self-cleaning feature also helps to maintain cold, consistent cacompartmentet storage temperatures. Even though this reversing motor doesn't eliminate the need for routine preventative maintenance, it extends the units lifespan and reduces energy use. *Free shipping on True Refrigeration TS-23F-HC within the 48 contiguous states. Freezer, reach-in, one-section, -10°F, (1) stainless steel door, (3) gray PVC coated adjustable wire shelves, interior lighting, stainless steel front/sides, stainless steel interior, 4" castors, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, NEMA 5-15P, 3.7 amps, cULus, UL EPH Classified, CE, ENERGY STAR® Watch a video about this product Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters. WARNING: Important Prop 65 information for California residents.
Product Details
- Part of the TS series

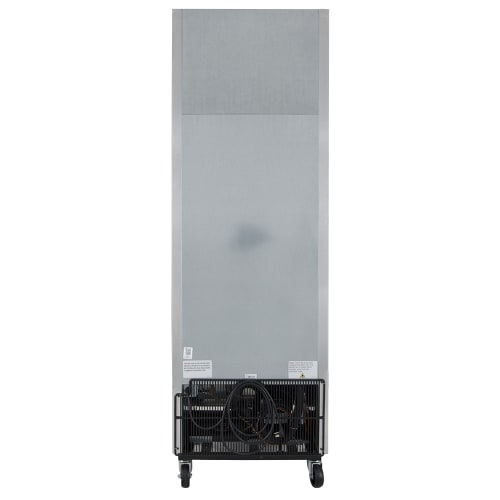

- Bottom-mounted condensing unit simplifies maintenance
- Uses R290 hydrocarbon refrigerant that is eco-friendly
- Operating temperature: -10 degrees F
- Automatic defrost system keeps the unit running smoothly
- Epoxy-coated evaporator resists corrosion
- Electronically commutated fan motors create less heat and use less energy than traditional motors
- Reversing condenser fan motor runs in reverse for 20 seconds to remove dust from coil
- Airflow guards prevent products from blocking open airflow

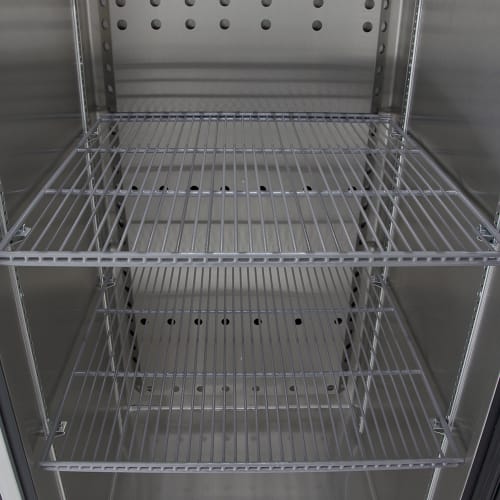

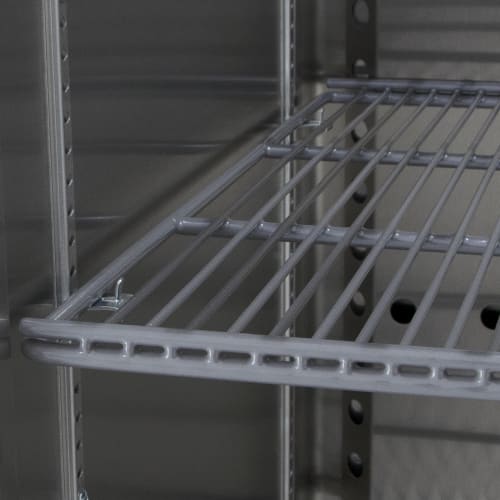

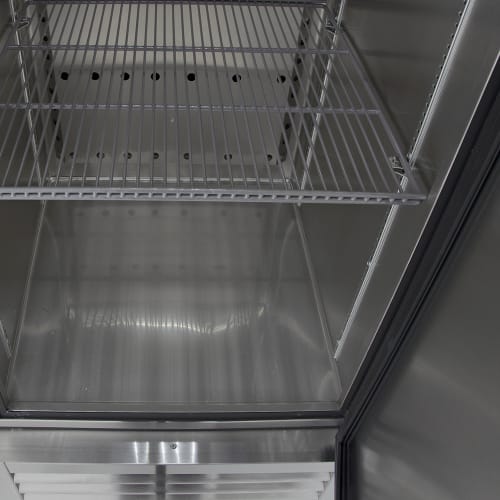

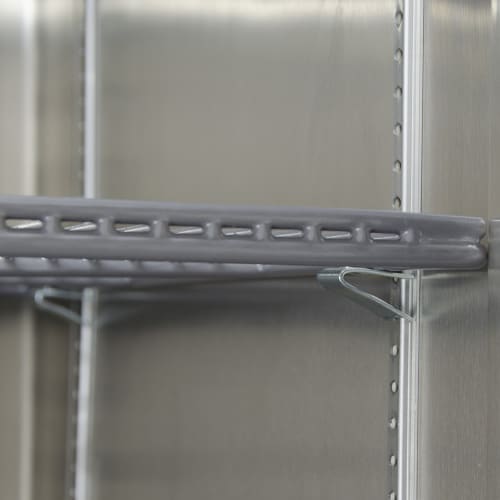

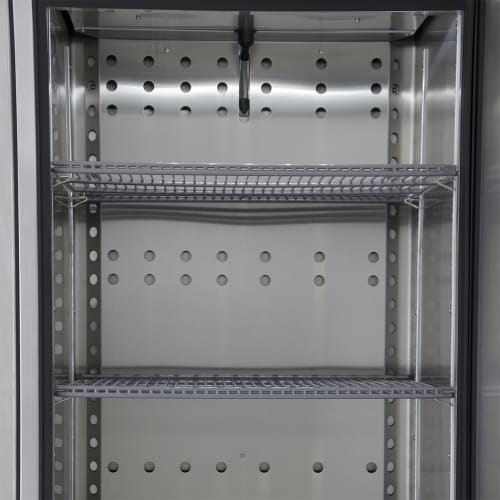

- 3 PVC-coated shelves are adjustable in 1⁄2-in. increments to accommodate various products
- Interior lights help users see in the cabinet
Specifications
| Manufacturer: | True Refrigeration |
| Width (in): | 27 |
| Depth (in): | 29.5 |
| Height (in): | 83.38 |
| Weight: | 310.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Hertz: | 60 |
| Warranty: | 7-year Parts & Labor; 7-year Compressor |
| Compressor Location: | Bottom |
| Cubic Feet: | 20.8 |
| Door Design: | Full |
| Door Type: | Solid |
| Hinge Configuration: | Right |
| Interior Material: | Stainless Steel |
| NEMA: | 5-15P |
| Product: | Reach-In Freezers |
| Product Type: | Commercial Refrigeration |
| Rating: | Best |
| Refrigerant: | R290 (Hydrocarbon) |
| Sections: | 1 |
| Series: | TS Series |

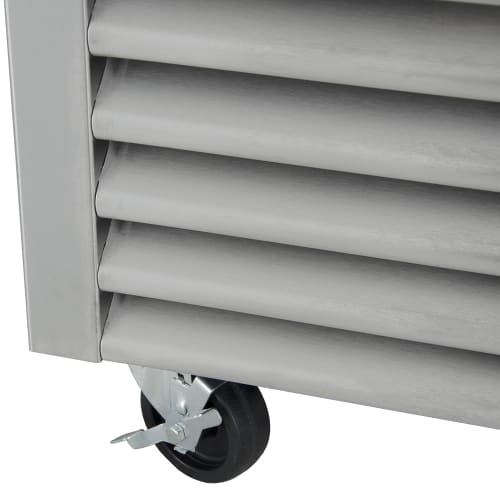

| Special Features: | Casters Included - Uninstalled |
| Type: | Reach In |
Dimensions & Utilities
- Shelves: 227⁄8 in. W x 231⁄4 in. D

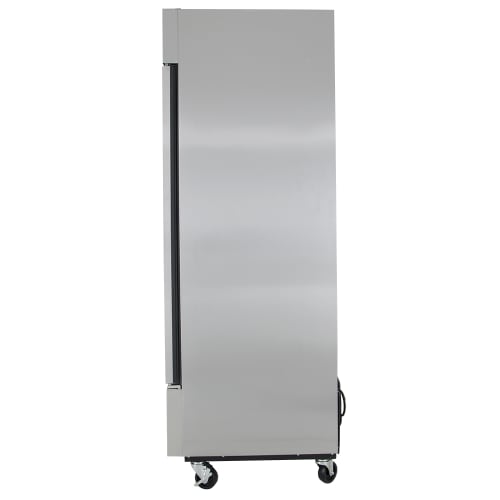

- Overall: 27 in. W x 291⁄2 in. D x 835⁄16 in. H
- 3.7 A, 1⁄2 HP

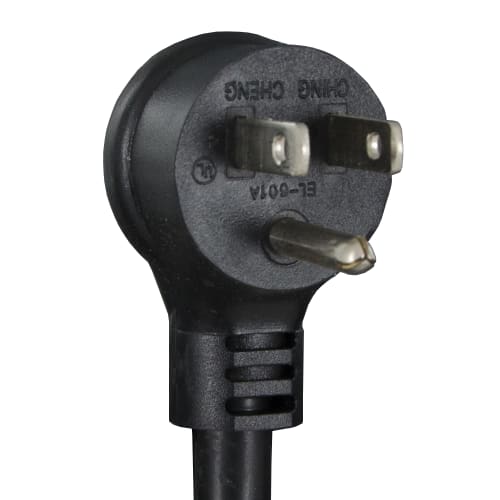

- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
- *Free shipping on True Refrigeration TS-23F-HC within the 48 contiguous states.
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Freezer, reach-in, one-section, -10°F, (1) stainless steel door, (3) gray PVC coated adjustable wire shelves, interior lighting, stainless steel front/sides, stainless steel interior, 4" castors, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, NEMA 5-15P, 3.7 amps, cULus, UL EPH Classified, CE, ENERGY STAR®
